Connection
5.1 Power supply
SCALANCE X-200
Compact Operating Instructions, 12/2010, A5E00813159-11
81

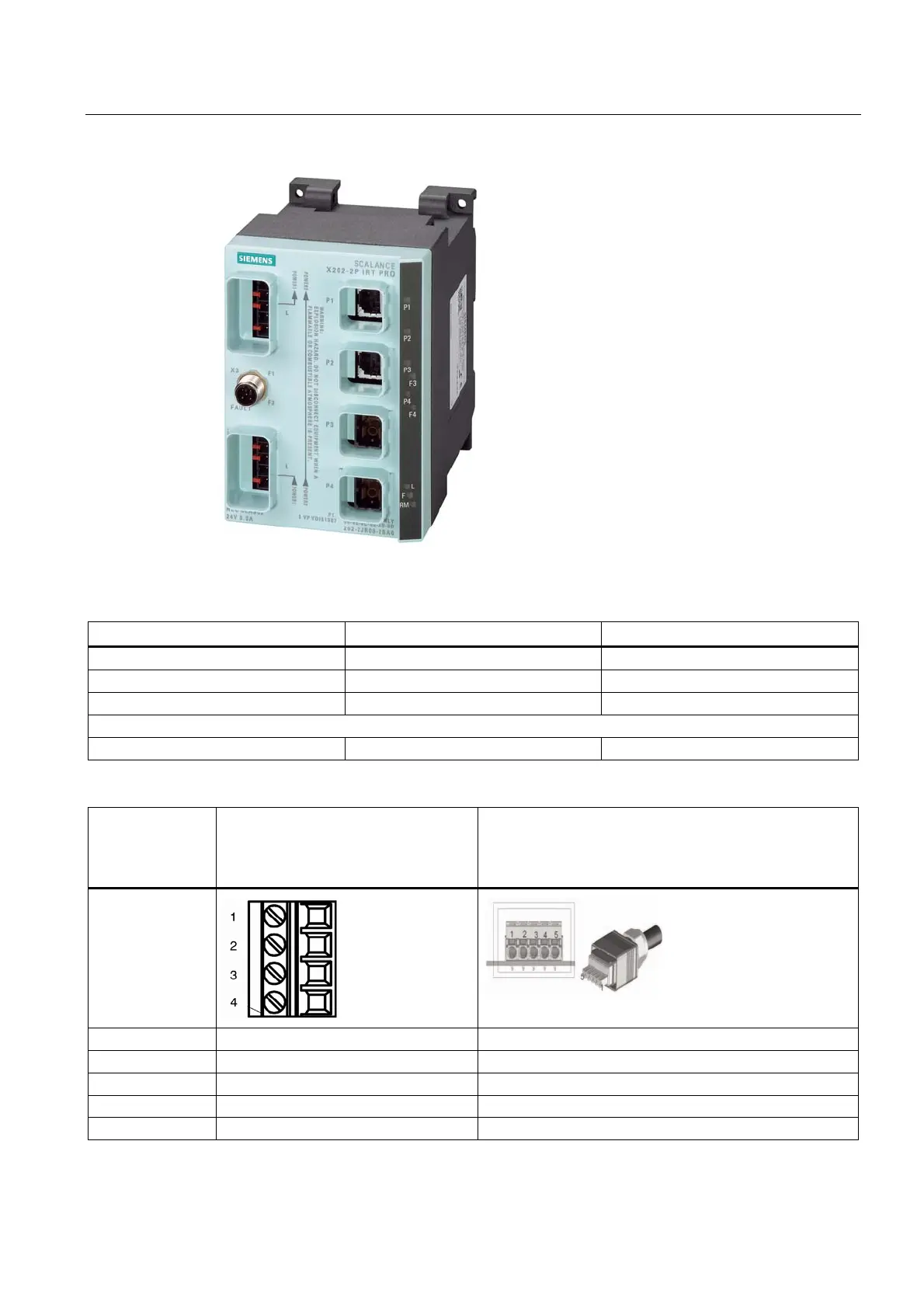

Figure 5-1 Mounting position for operation under marginal conditions
Table 5- 1 Operation under marginal conditions
Environment Max Power 1 (L1+, N1) Max Power 2 (L2+, N2)
+40℃ 16 A 16 A
+50℃ 12 A 12 A
+60℃ 8 A 8 A
SCALANCE X204 IRT PRO only
+70°C 6 A 6 A
Table 5- 2 Pin assignment
Pin number Assignment
(exceptions:
SCALANCE X204 IRT PRO,
X202-2P IRT PRO, X201-3P IRT PRO)
X204 IRT PRO
X202-2P IRT PRO
X201-3P IRT PRO
Pin 1 L1 +24 VDC L1 +24 VDC
Pin 2 M1 N1
Pin 3 M2 L2 +24 VDC
Pin 4 L2 +24 VDC N2
Pin 5 - FE (Functional Earth)
