Installation
3.2 Mounting on DIN rails
SCALANCE XB-200
22 Operating Instructions, 09/2015, C79000-G8976-C359-03
Removal

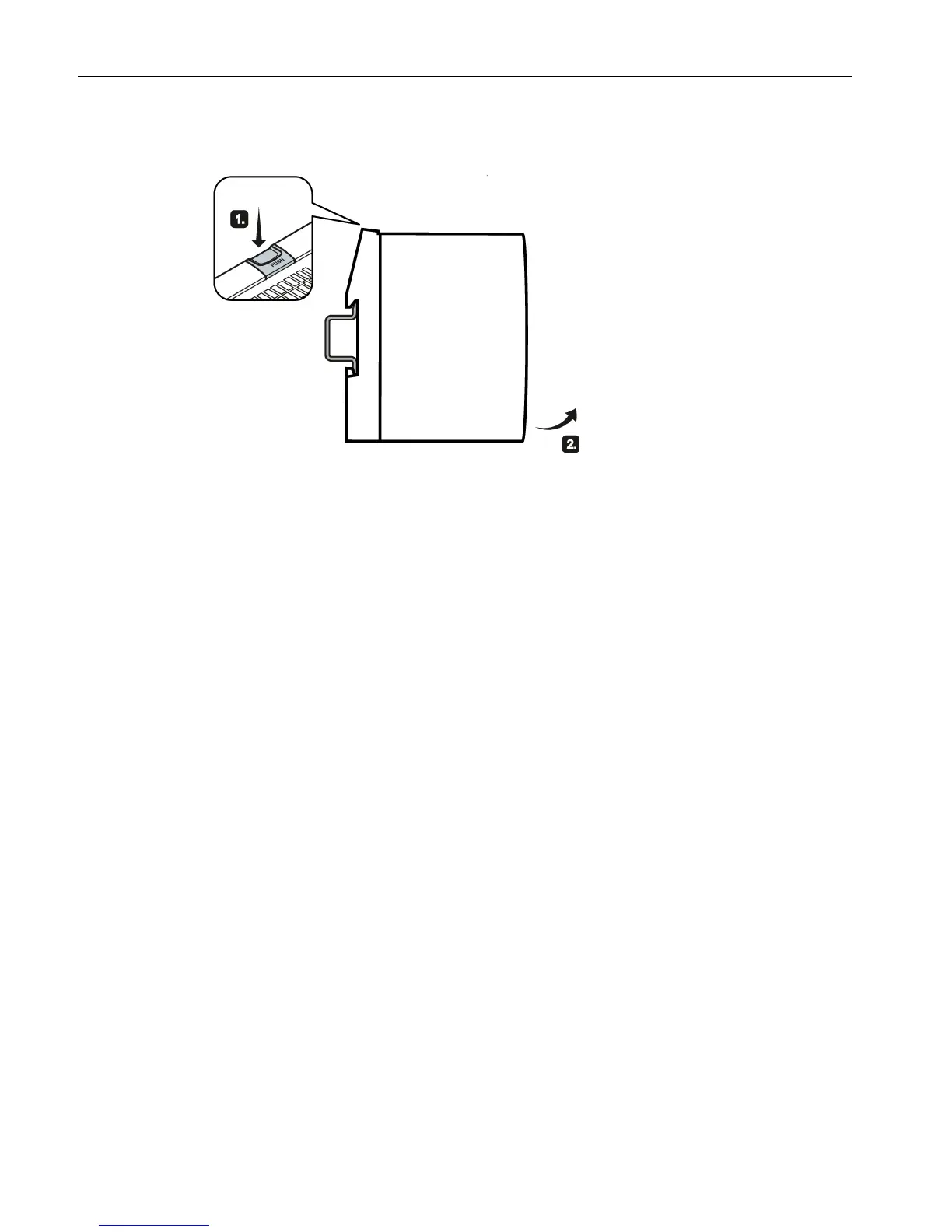

Figure 3-2 Removing from a DIN rail
To remove the device from a DIN rail, follow the steps below:
1. Disconnect all connected cables.
2. Release the DIN rail locking mechanism by pressing down on the release button
①.
3. Pull the lower part of the device away from the DIN rail
②.
