Siemens SCALANCE XR324-12M User Manual

Configuration, displays and display elements
7.3 XR-300 diagnostics port
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
145
Pinout of the RJ-11 jack of the diagnostics port

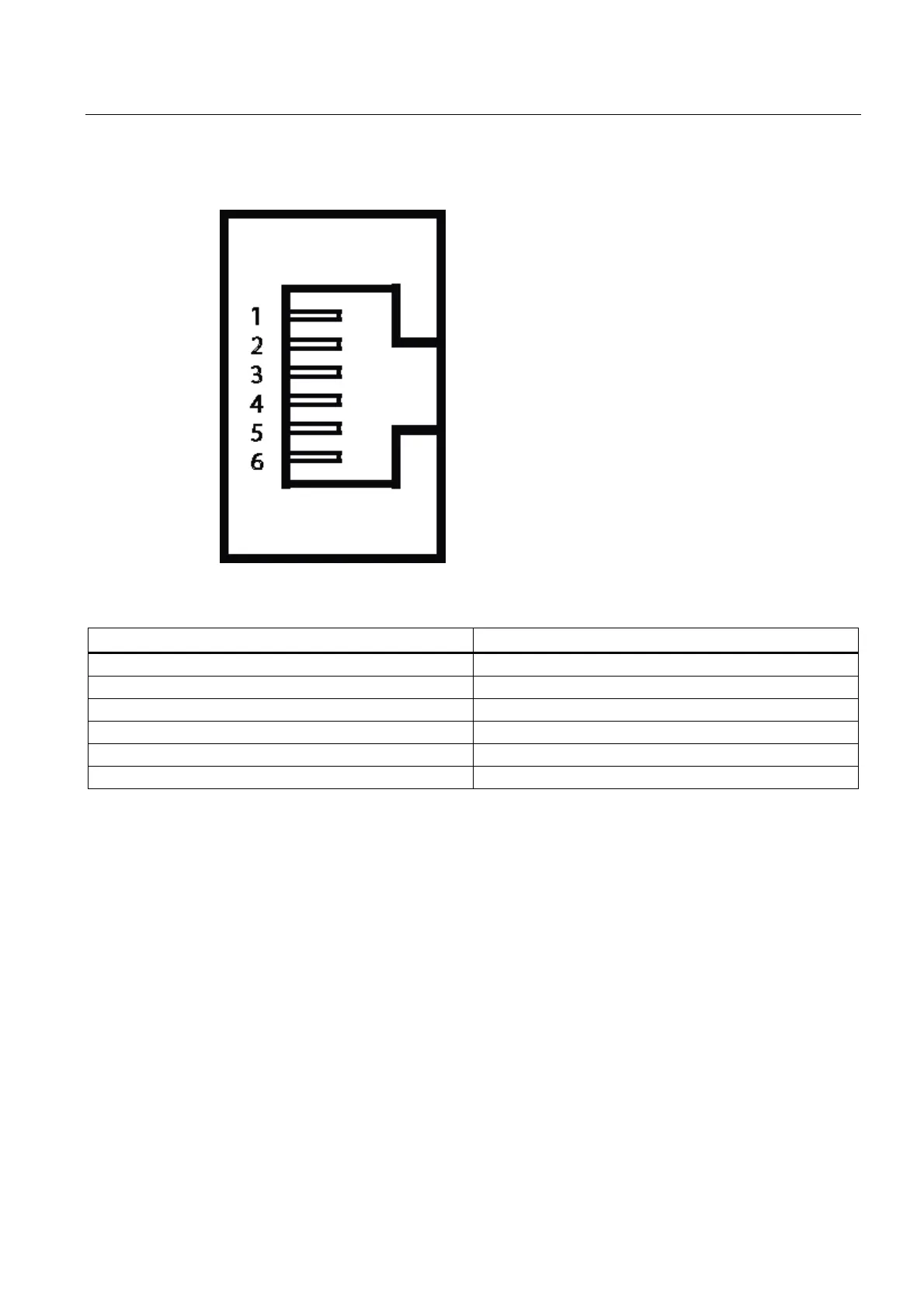

Figure 7-3 RJ-11 jack (schematic)
Pin number Pinout of the RJ-11 jack
1 n.c.
2 n.c.
3 TD (Transmit Data)
4 SG (Signal Ground)
5 RD (Receive Data)
6 n.c.
