Graphics
11.6 MM900 dimension drawings
SCALANCE X-300
Operating Instructions, 02/2012, A5E01113043-12
299

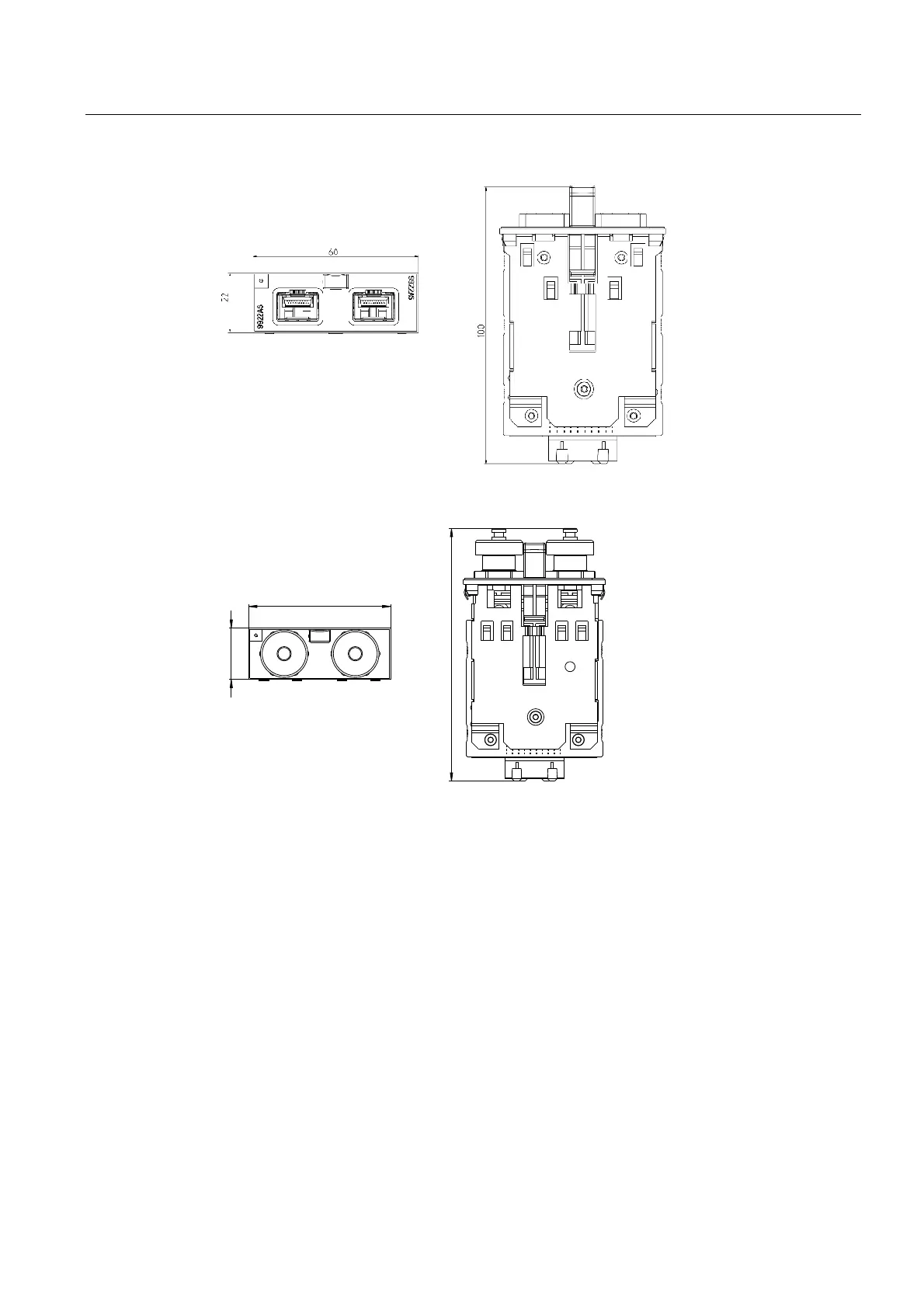

Figure 11-26 MM900 dimension drawing 5: SFP media module
60
22
106,5
9922HA
9922HA
Figure 11-27 MM900 dimension drawing 6: M12 ports electrical
