3 Installation
Procedure
1. Prepare the mounting hole:
For the antenna connection, drill a round hole with a diameter of
35-40 mm and for the antenna attachment two holes with a
diameter of 4.5 mm.

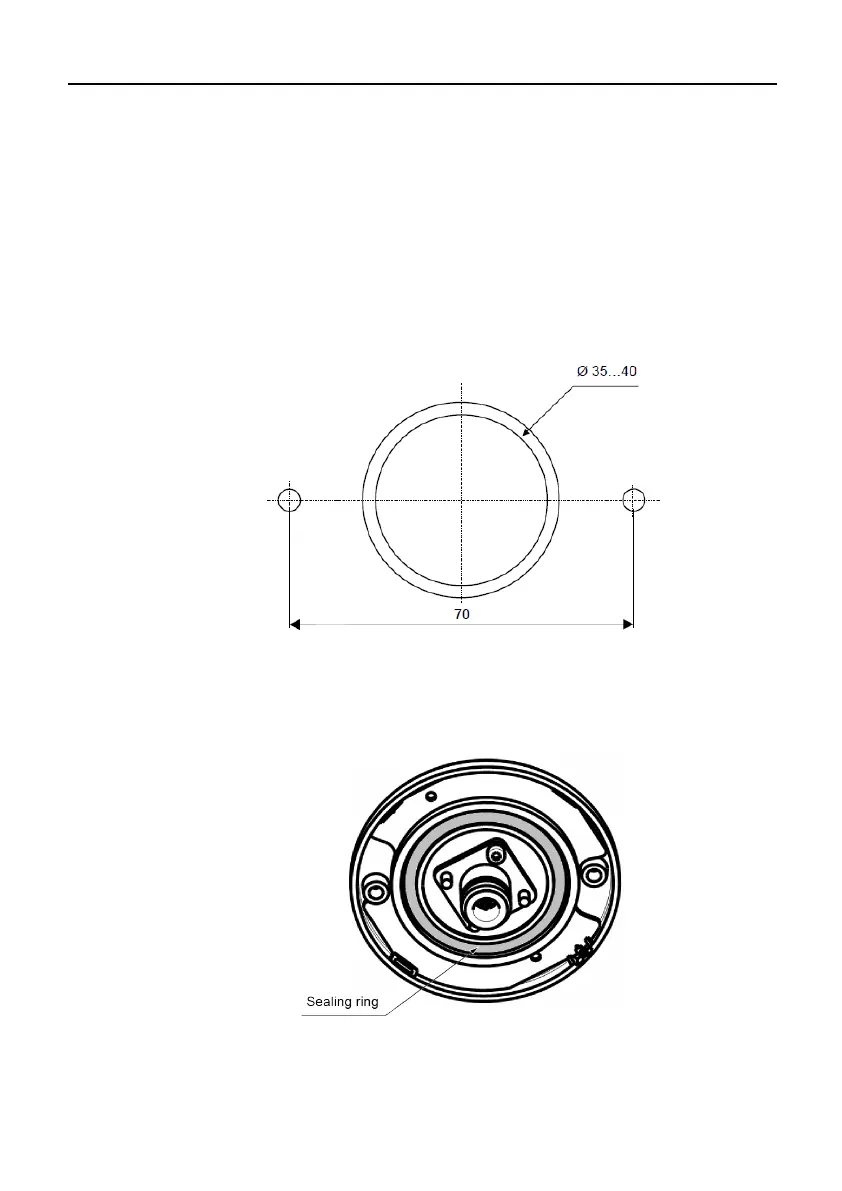

The dimensions are shown in the following picture.
2. Check the sealing ring for correct seating:
Make sure that the sealing ring on the antenna bottom is
positioned correctly:
