en Positioning and connecting
16

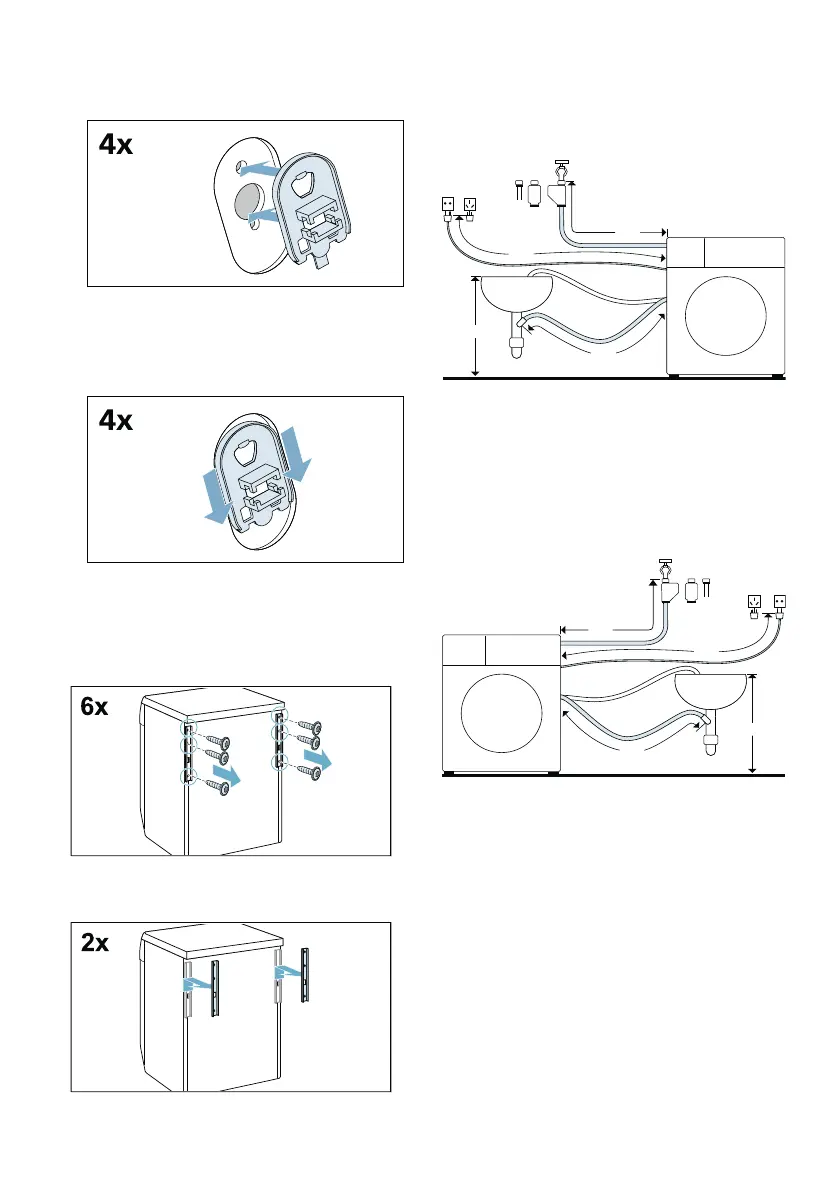

3. Fit the covers.
4. Lock the covers firmly in place by
applying pressure to the snap-in
hooks.
Removing the support struts
1. Unscrew and remove all screws in
the vertical transport struts.
2. Remove the transport struts.
Hose and cable lengths
Connection on left side
or
Connection on right side
Note: If the supply hose is too short for
your connection, you can order an
extension from the after-sales service.
7
( ~ 105 cm
0 ~ 145 cm
8 ~ 95 cm
@ 60 cm ~ 100 cm
( ~ 60 cm
0 ~ 195 cm
8 ~ 140 cm
@ 60 cm ~ 100 cm
#
#
