Siesta ARYN25FMV1B - OUTLINE AND DIMENSIONS; Indoor Unit Dimensions

1
English

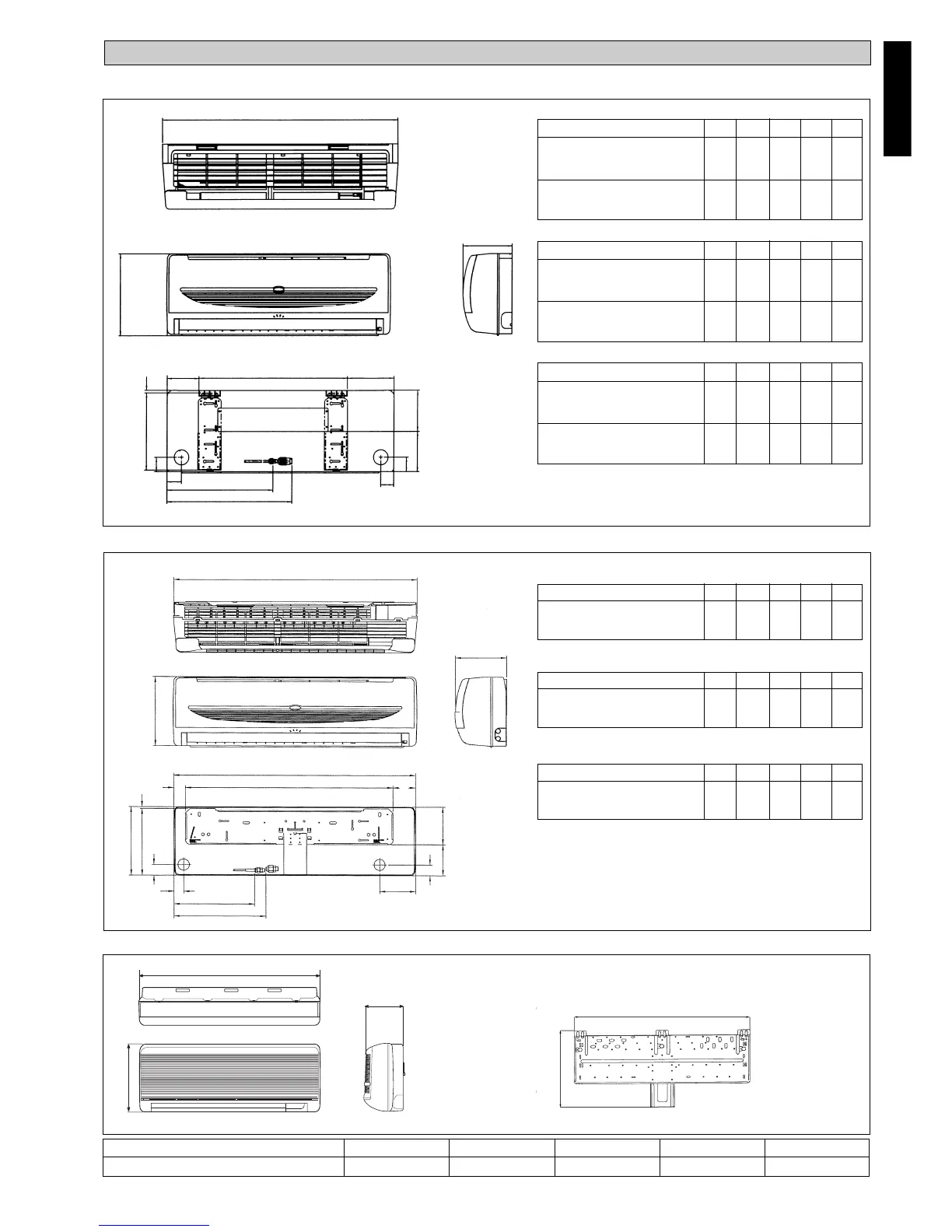

OUTLINE AND DIMENSIONS
All dimensions are in mm/ (in)
FRONT VIEW
TOP VIEW
A
C
DG
F
SIDE VIEW
INSTALLATION
PLATE
ON
I
M
B
E
H
I
J
K
L
Dimension A B C D E
ATY50FMV1B / ATYN50FMV1B 1060 310 220 912 294
ATY60FMV1B / ATYN60FMV1B (41.7) (12.2) (8.6) (35.9) (11.6)
FRONT VIEW
TOP VIEW
INSTALLATION
PLATE
I
O
N
SIDE VIEW
C
A
D
CENTER LINE
F
B
G
H
B
M
I
K
L
J
A
Indoor Unit
Dimension K L M N O
ATY50FMV1B / ATYN50FMV1B 354 403 160 138 160
ATY60FMV1B / ATYN60FMV1B (13.9) (15.9) (6.3) (5.4) (6.3)
M
Dimension K L M N O
ATY25FMV1B / 319 379 50 128 132
ATYN25FMV1B (12.6) (15.0) (2.0) (5.1) (5.2)
ATY35FMV1B / 419 495 50 128 132
ATYN35FMV1B (16.5) (19.5) (2.0) (5.1) (5.2)
Dimension F G H I J
ATY25FMV1B / 185 124 8 56 50
ATYN25FMV1B (7.3) (4.9) (0.3) (2.2) (2.0)
ATY35FMV1B / 185 124 8 56 50
ATYN35FMV1B (7.3) (4.9) (0.3) (2.2) (2.0)
Dimension A B C D E
ATY25FMV1B / 799 260 198 379 246
ATYN25FMV1B (31.5) (10.2) (7.8) (15.0) (9.7)
ATY35FMV1B / 899 260 198 590 246
ATYN35FMV1B (35.4) (10.2) (7.8) (23.2) (9.7)
Dimension A B C D E
ATY71FMV1B 1200 (44.1) 360 (14.2) 200 (7.9) 730 (28.7) 347 (13.7)
D
INSTALLATION PLATE
E
FRONT VIEW
TOP VIEW
A
B
C
SIDE VIEW
All dimensions are in mm/ (in)
All dimensions are in mm/ (in)
Dimension F G H I J
ATY50FMV1B / ATYN50FMV1B 99 51 8 48 43
ATY60FMV1B / ATYN60FMV1B (3.9) (2.0) (0.3) (1.9) (1.7)
