MSK320+MB320,MRI01,MR320,MRF320 Datum 23.11.2009 Art.Nr. 80353 Änd. Stand 350/09 11

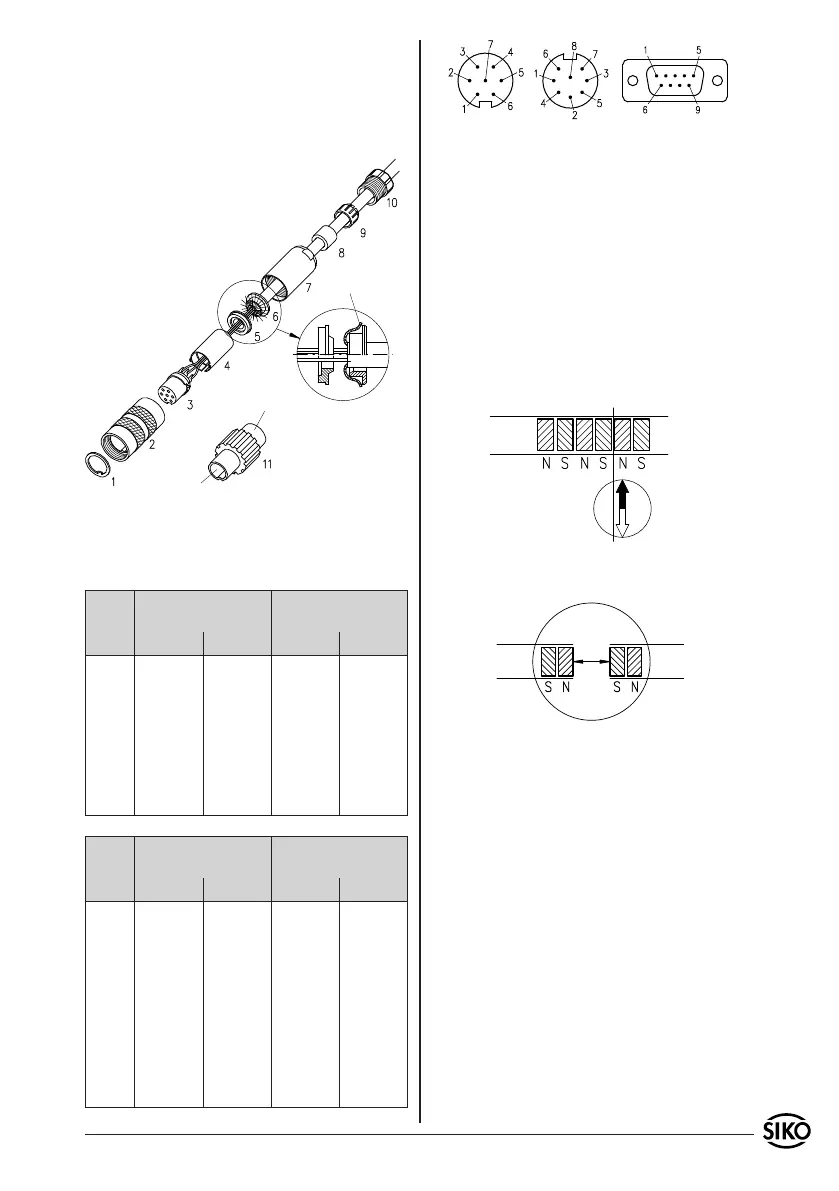

Fig. 9: Mounting connection type E6
sreening
socket
pin
viewing side = plug-in side
Fig. 11: Determination of the pole position. Joining
the magnetic strip
Fig. 10: Determination of the pole position. Cutting
the magnetic strip
Push parts 2 and 7 together and screw part 11
using appropriate tool.
Push part 8 into part 9 and slide both parts
into part 7.
Screw parts 10 and 7 together.
Push part 1 into part 2.
8.
9.
10.
11.
E8: Connection with 9 pole D-SUB plug pin and
socket contact.
Signal not
inverted
inverted
E6 E8 E6 E8
A PIN 3 PIN 3 PIN 1 PIN 1
B 4 4 2 2
+UB 2 2 4 4
GND 1 1 5 5
A/ - - - - - - 6 6
B/ - - - - - - 7 7
- - - 5-7 5-9 3 3, 8, 9
Signal not inverted with
reference signal
inverted with refe-
rence signal
E6 E8 E6 E8
A PIN 3 PIN 3 PIN 1 PIN 1
B 4 4 2 2
I 5 5 3 3
+UB 2 2 4 4
GND 1 1 5 5
A/ - - - - - - 6 6
B/ - - - - - - 7 7
I/ - - - - - - 8 8
- - - 6-7 6-9 9
5. Joining magnetic strips together
For some applications it may be necessary to ex-
tend the magnetic strip. The magnetic strip can be
cut and rejoined using standard tools.
But however carefully this is done the accuracy of
the strip at the join will be impaired (error of at
least 0,1mm ... 0,2mm).
The following tools / accessories are required:
magnet magnifier, magnetic foil or metal dust
rule or suitable tool
compass needle
•
•
•
Steps
If there is a cover strip, this is to be removed
first.
To determine the pole division either use metal
dust, a magnet magnifier or magnetic foil.
If necessary, use a compass needle to determine
the location of the poles on the magnetic strip
(fig. 10).
Use a rule and a sharp knife to cut the magnetic
strip at a right angle. Then also cut the carrier
strip accordingly.
Previous steps are to be repeated with the other
part of strip.
Check polarity before joining the two parts.
Both ends must attract each other (if necessary,
use compass needle). In case both ends have the
•
•
•
•
•
•
