lid connection

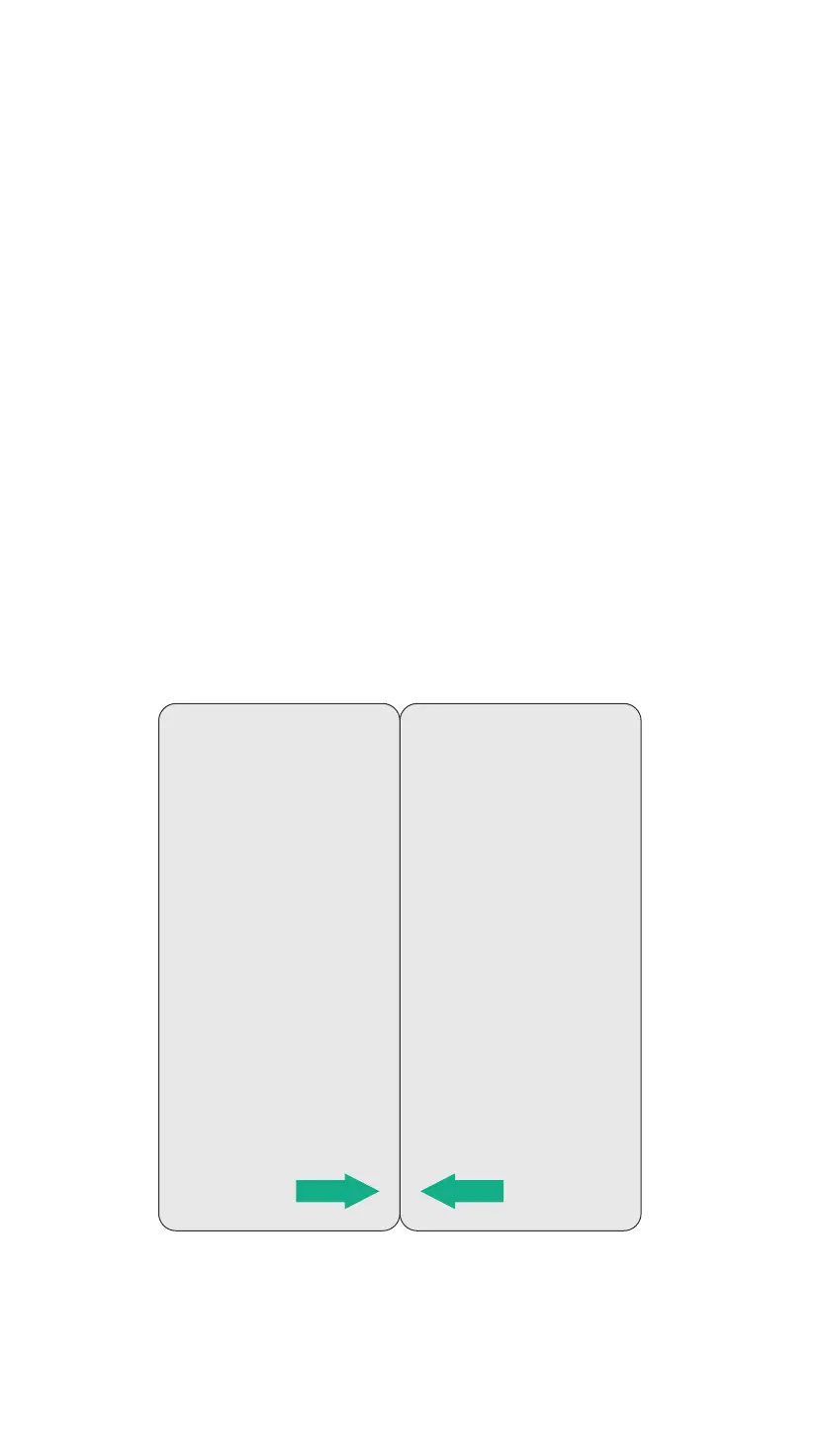

1. Identify the 2 drilled connecting holes on the
front, inner sides of each lid (green arrows),
identiied with a ‘Pierce Here’ label. Using the
large bradawl, pierce the fabric and make a
hole large enough for the ‘female’ connector in
both holes.
2. After applying a metal washer, insert the ‘female
connector’ from the inside of one of the lids.
Also using a metal washer, insert the ‘male
connector’ from the inside of the other lid.
3. Screw the male and female connectors together.
It may be necessary to include one or both plastic spacer
washers between the lids to allow alignment adjustment
due to the potential irregularities of loor surfaces.
