Silhouette DIM3225BLSST

6
OPERATING INSTRUCTIONS

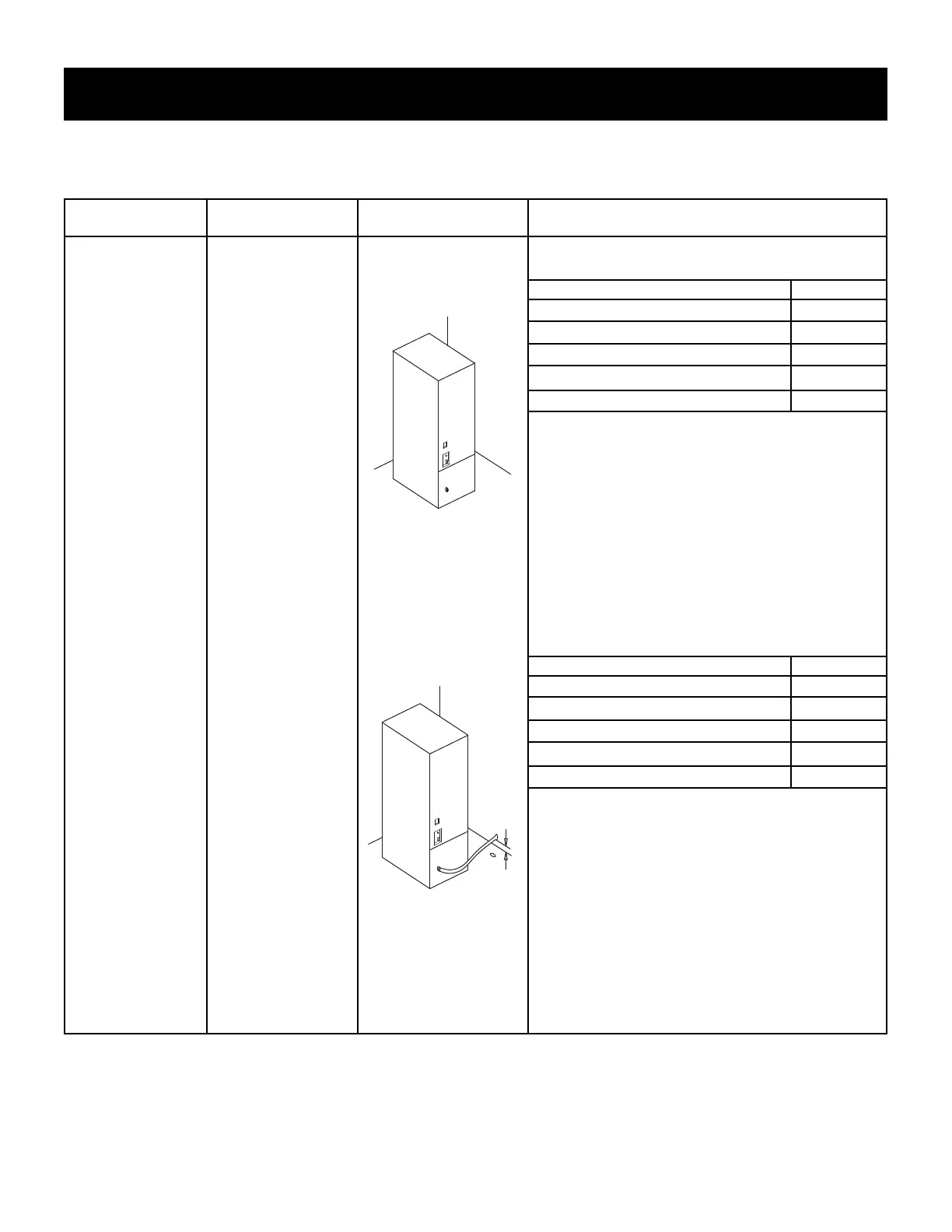

Ice Maker Performance Mode Instructions (cont)
Performance
Mode
Instructions
Suitable situation
Operation instruction
Manual drainage
system mode
Manually drain the
water from the ice
box.
There is no drain hole
in the room
Ref: Fig.A & Fig.B & Fig.C (page 5)
Drain Nut and Switch
Condition
drain nut (front) (3) + drain seal (front) (4)
drain nut (back) (7) + drain seal (back) (6)
drain cap (11)
drain cap (12)
drain pump switch (8)
lock
lock
lock
lock
OFF
1. Please insure the drain nut and switch are in the
above condition to avoid water leakage.
2. Periodically check the Ice box (1), water level sight(5).
If the water level exceeds the ruler water level,please
drain off the unnecessary water.
3. When draining off the water, you can remove the Ice
box(1), drain nut (front) (3) and drain seal (front) (4)
use the holder to take out the unnecessary water, then
tighten the above drain seal and nut.
Direct drainage
mode (continuous)
Unnecessary water
will be drained off
by the outlet water
pipe on the back of
the unit
10cm
Ref: Fig.A & Fig.B & Fig.C (page 5)
Drain Nut and Switch
Condition
drain nut (front) (3) + drain seal (front) (4)
drain nut (back) (7) + drain seal (back) (6)
drain cap (11)
drain cap (12)
drain pump switch (8)
lock
open
lock
open
OFF
1. Please insure the drain nut and switch are in the
above condition;
2. Use a drain tube with a length of (4 feet). Connect one
side to the direct water outlet pipe connection (13) and
the other to the drain hole. Please insure the
connection is tight to avoid water leakage.
The height of drain hole
in the room is less than
<10cm> high.
