15. Install the replacement R12000A CPU module as shown in Figure 11.
• Align the screw holes on the CPU module with the screw holes on the CPU
support. Make sure it is positioned correctly before pressing down.
• Press down gently on the CPU module until it is securely seated.
• Insert and tighten the four Phillips screws in the locations shown.

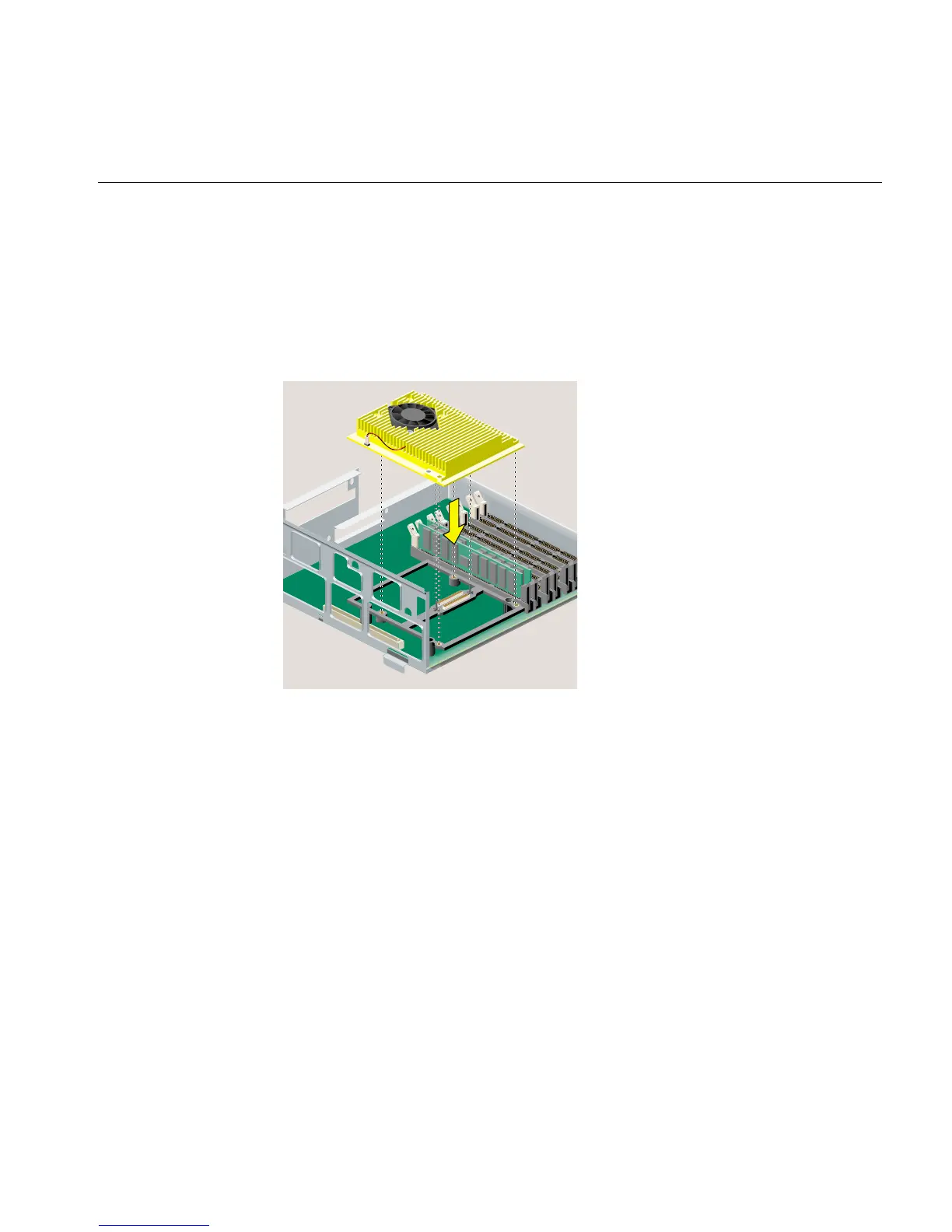

Figure 11 Securing the R12000A CPU Module
16. Remove the wrist strap.
