SilverBack B8401 - Page 27

27
HARDWARE NEEDED (ACTUAL SIZE)
HEX HEAD BOLT M10-1.5 X 100mm
1B-7078-00
20
(QTY. 3)
WASHER _ CURVED M10
2B-6802-00
39
(QTY. 3)
HEX NUT M10-1.5, WITH CAP
2B-6799-00
21
(QTY. 3)

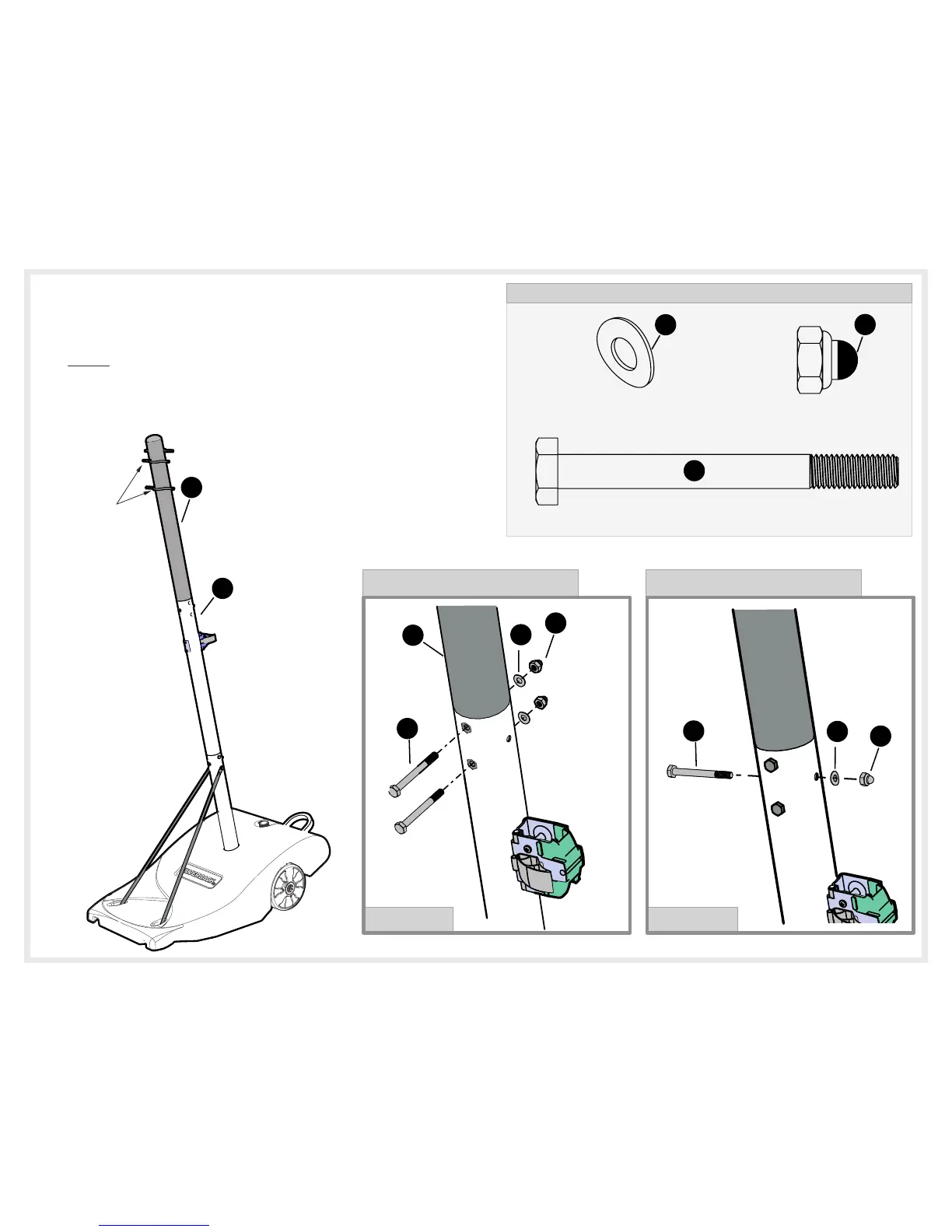

23. Insert hardware as shown in Detail A & Detail B.
FINGER TIGHTEN ONLY.
50
51
BOTH BARS ARE ON
THE SAME SIDE AS
THE SUPPORT
LINKAGES
NOTE:
MAKE SURE HEADS OF THE BOLTS ARE
INSERTED INTO THE CUT OUT OF THE POLE.
DETAIL BDETAIL A
39
21
20
51
20
39
21
FINGER TIGHTEN NUT ONLY. FINGER TIGHTEN NUT ONLY.
