SilverBack B8401 - Table of Contents; Tools Needed

11
12
16mm
TOOLS NEEDED
16mm
23
WASHER M10
2B-6800-00
(QTY. 4)
HEX LOCK NUT M10-1.5
2B-6801-00
24
(QTY. 2)
HARDWARE NEEDED (ACTUAL SIZE)
HEX HEAD BOLT M10-1.5 X 25mm
1B-7082-00
(QTY. 2)
36

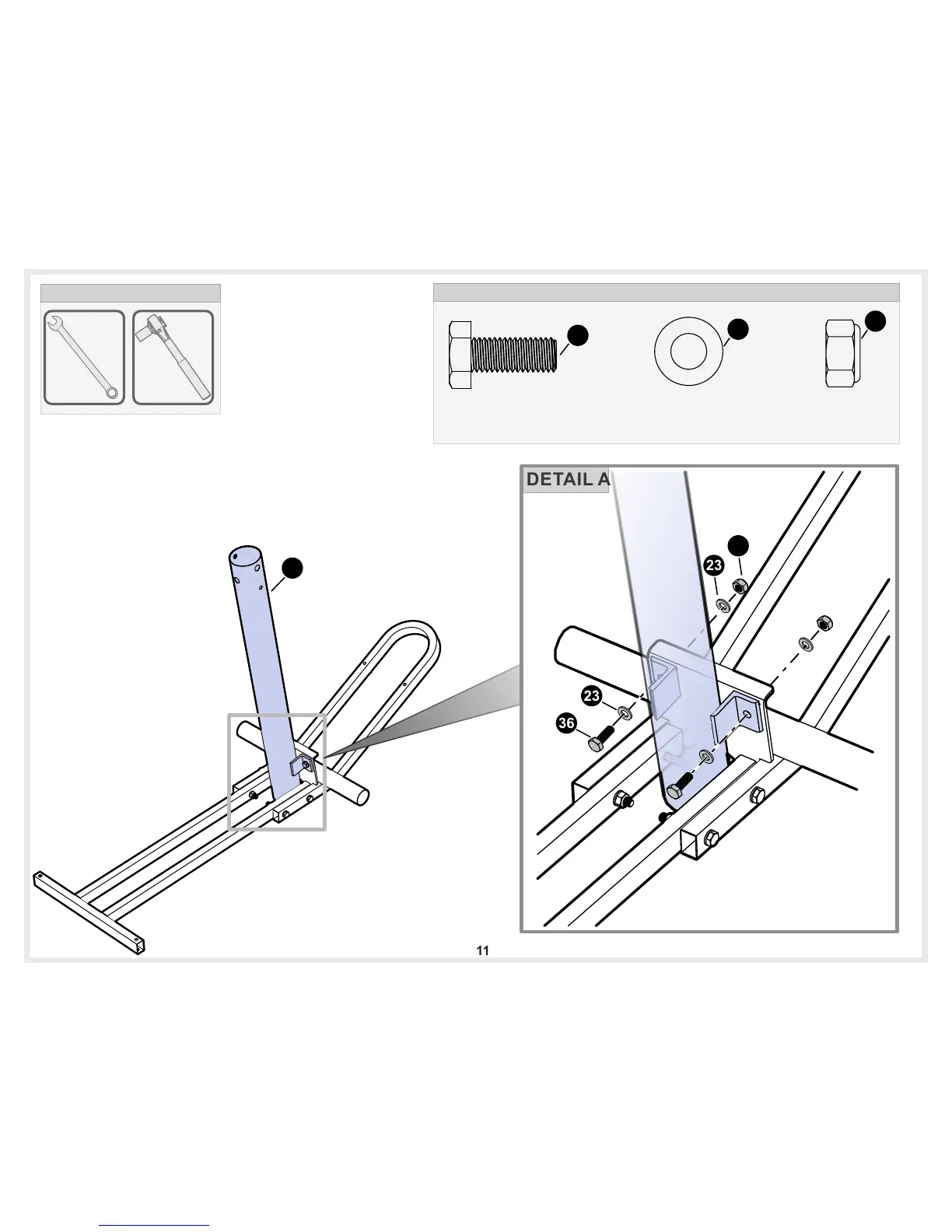

3. Finish securing lower pole (12) to lower assembly
as shown. Tighten all hardware at this time
including hardware from step 1 & 2.
DETAIL A
36
23
24
23
