SilverBack B8401 - Page 35

35
DETAIL C
HARDWARE NEEDED
TOOLS NEEDED
Phillips
FLAT HEAD SCREW M4-0.7 X 10mm
(QTY. 2)
1B-7100-00
59

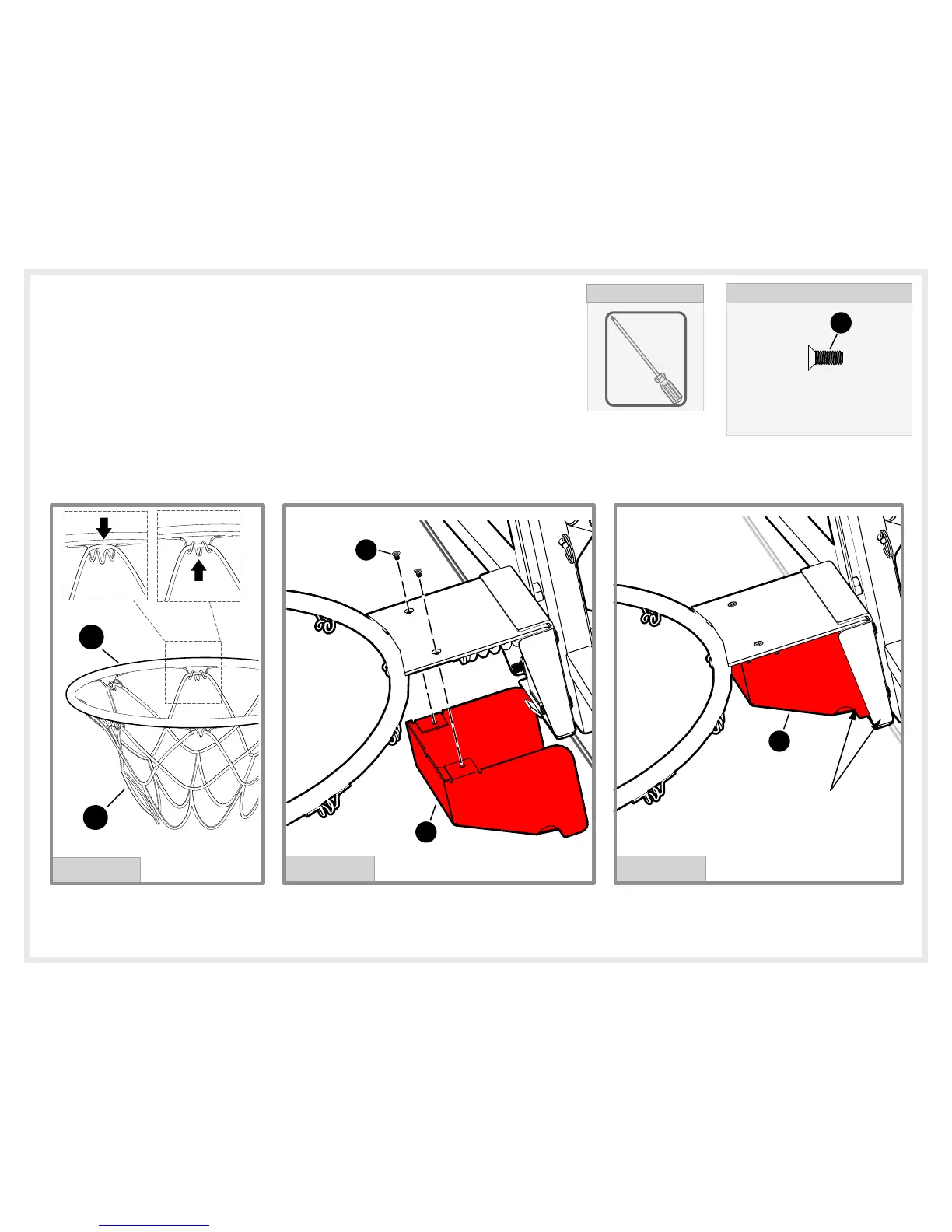

34. Attach Net (58) to Rim (44) by looping net over
metal horn and tucking under as shown in Detail A.
60
NOTE: Make sure the
Spring Cover (60) is on
the inside of the rim on
both sides.
DETAIL A
P3
44
58
DETAIL B
60
59
35. Attach Spring Cover Plate (60) to Rim with two
Screws (59). See Detail B &C.
NET NOT
SHOWN FOR
CLARITY.
NET NOT
SHOWN FOR
CLARITY.
