14

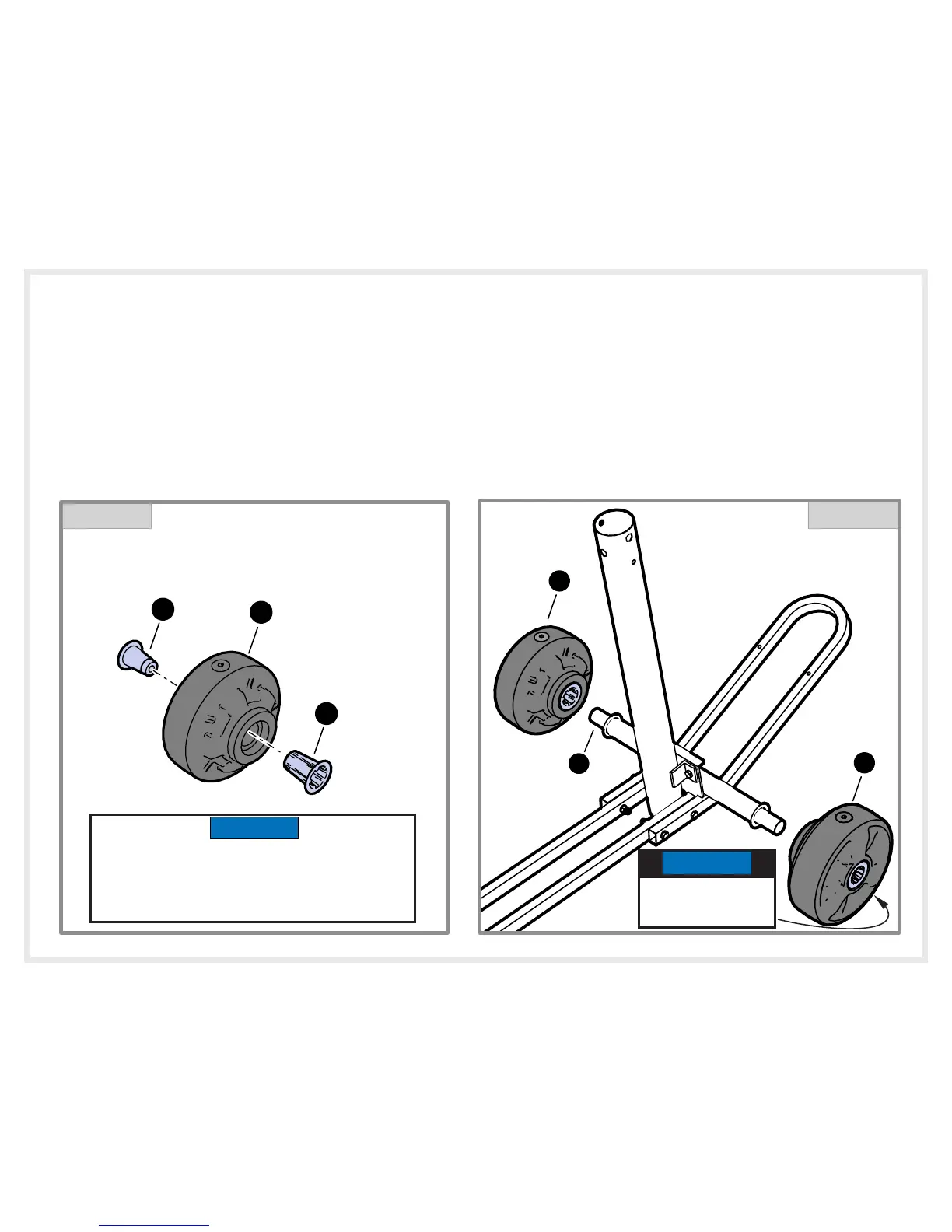

7. Slide Wheel (7) onto Axle (4). Repeat step to
install the second wheel. See Detail B.
NOTE: Inner Wheel Hub (6) and Outer wheel (8) are
pre-assembled into Wheel (7) by the factory. If
either of those parts have fallen out during
shipping re-insert parts as shown in Detail A.
8
7
6
DETAIL A
NOTE
Inner Wheel Hub (6) and Outer wheel (8) are
pre-assembled into Wheel (7) by the factory. If
either of those parts have fallen out during
shipping re-insert parts as shown in Detail A.
DETAIL B
7
7
4
NOTE
The flat part of the
Wheels go to the
outside.
To Next Page
