9
HEX HEAD BOLT M10-1.5 X 65mm
1B-7081-00
35
(QTY. 2)
23
WASHER M10
2B-6800-00
(QTY. 4)
HEX LOCK NUT M10-1.5
2B-6801-00
24
(QTY. 2)
35
23
24
2
3
HARDWARE NEEDED (ACTUAL SIZE)
DETAIL A

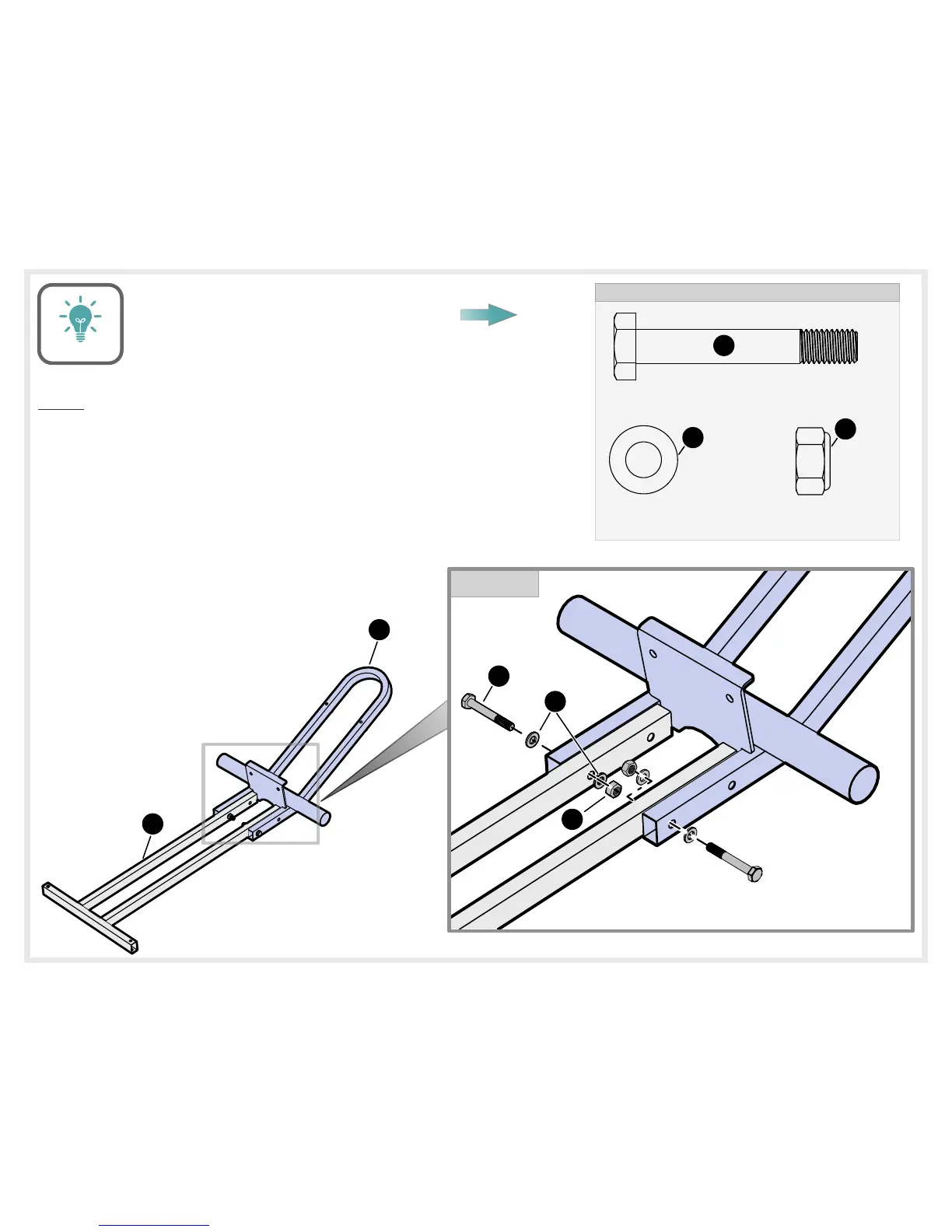

1. Assemble parts 2 & 3 as shown. Tighten hardware
finger tight only.
Prepare a flat area that is clear of debris. Keep children
away from the assembly area. Two capable adults are
needed for the following steps.
NOTE:
ASSEMBLY TIP
The following pages will have a picture of the
Hardware Needed along with the Quantity, Part
Number and Description. You can lay the hardware
on the picture to identify the hardware.
To Next Page
