26
DETAIL A

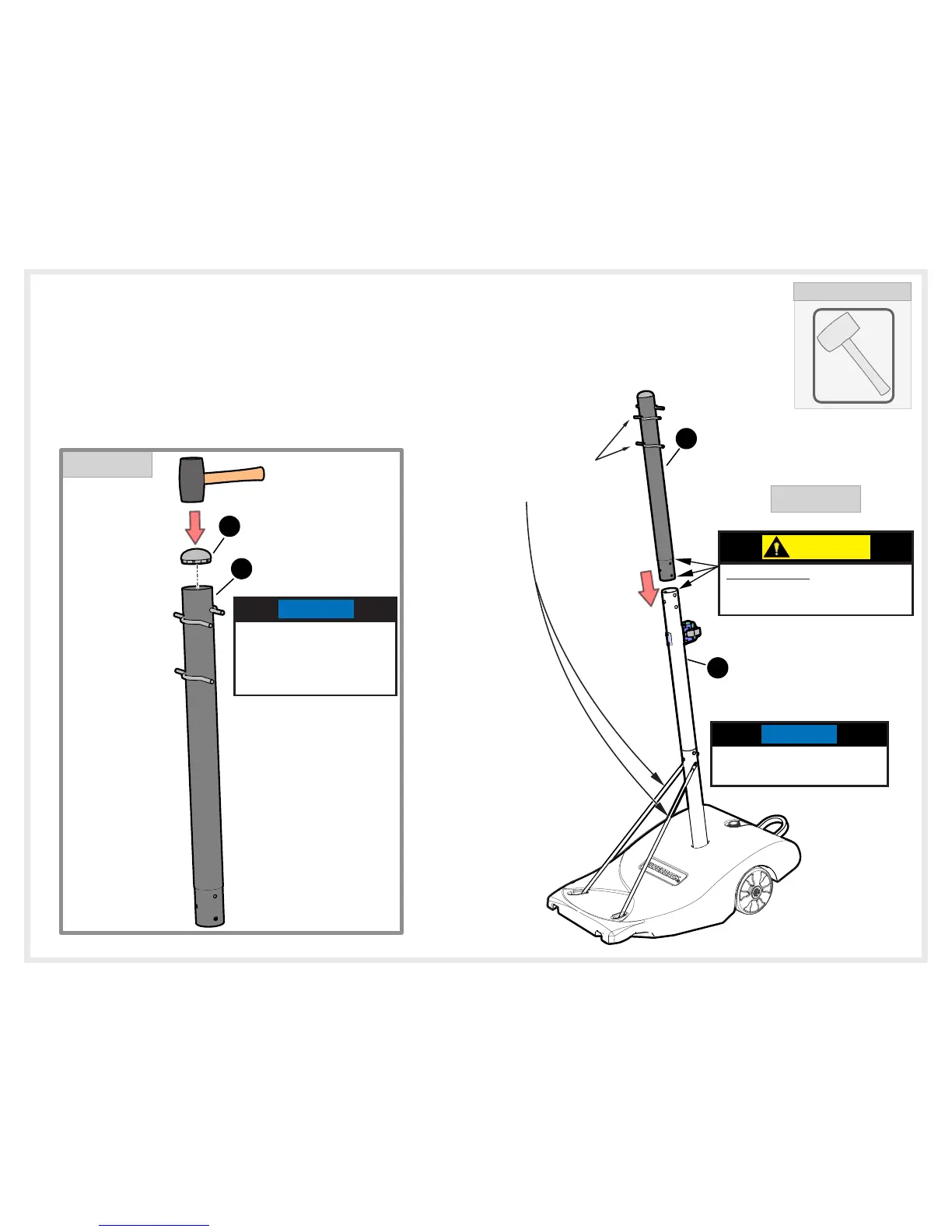

21. Set the top pole (51) on a piece of cardboard (packing material) to protect the bottom
of the pole. Insert the Pole Cap (38) at the top of the pole as shown in Detail A.
TOOLS NEEDED
Rubber
Mallet
38
51
51
22. Insert Top Pole (51) into Middle Pole (50). Make sure that the two bars on
the top pole are on the same side as the Support Linkages in the Front.
See Detail B.
DETAIL B
NOTE: If your Top Pole (51) has the Pole Cap (38) pre-installed skip step 21.
50
BOTH BARS ARE
ON THE SAME
SIDE AS THE
SUPPORT
LINKAGES
If needed use a Rubber
Mallet to tap Cap in
but be very careful not
to damage it.
NOTE
DO NOT step on the
ballast to attach top pole.
NOTE
CAUTION:
PINCH POINTS! DO NOT place
your hand on any of these three
locations when inserting the pole.
