HARDWARE NEEDED
54
HITCH PIN
7B-6577-00
33
(QTY. 2)

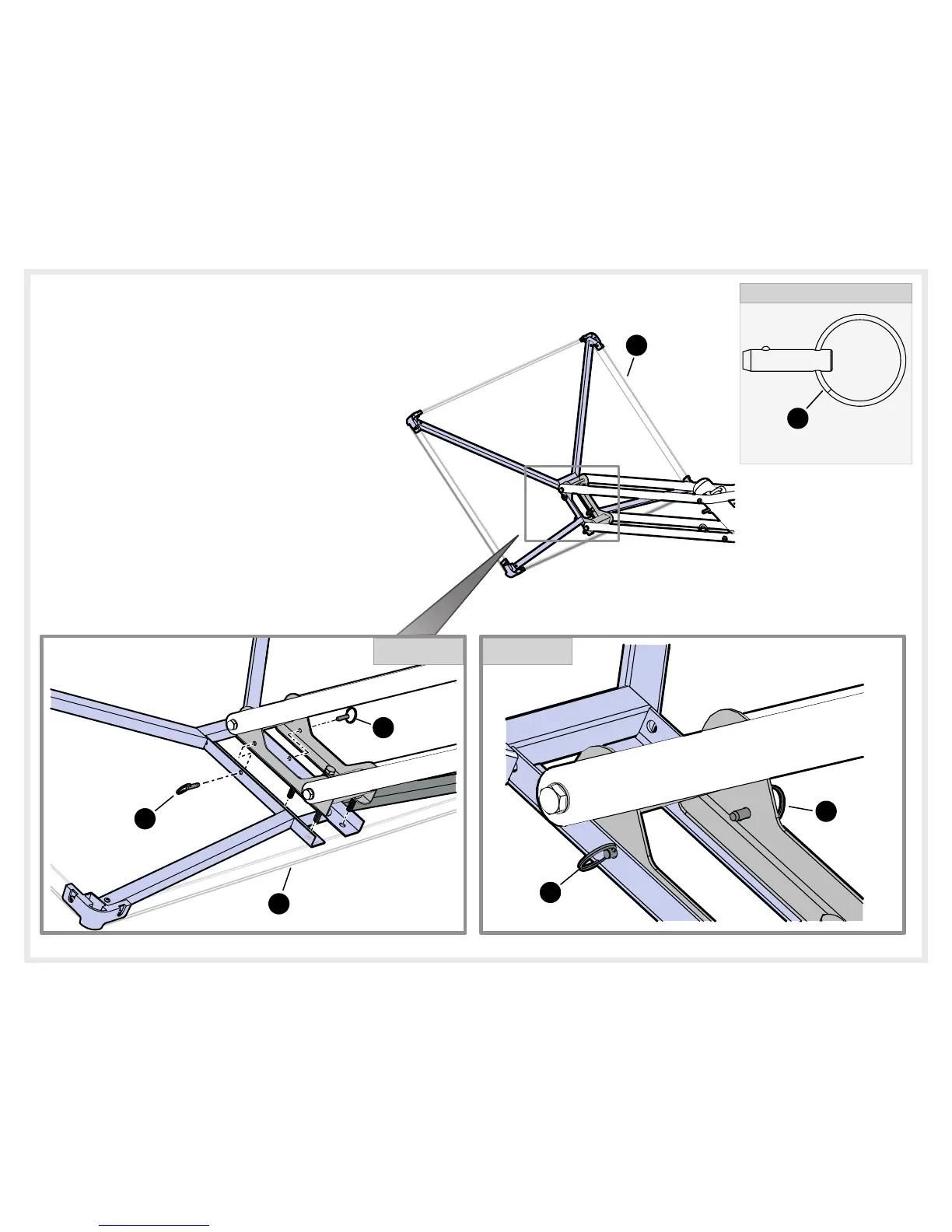

32. With the assembly still facing down, attach
the backboard as shown. Have a person
hold the backboard while you insert the
Hitch pins (33) into the backboard supports.
See Details A & B. The hitch pins will keep
the backboard in place and will be
completely secure once the Rim is attached.
NOTE: If needed, the person holding the
Backboard can get on one knee while
holding the backboard.
33
33
DETAIL B
54
33
33
DETAIL ADETAIL A
