6 Silvercrest TM-220 (V1.7)
Supplied items
Karaoke kit SilverCrest TM-220
Mains adapter type Taiytech TYT71200010EU
(in UK Taiytech TYT71200010UK)
2 SilverCrest TM-220 microphones
2 microphone cables
2 audio/video cables
1 SCART adapter (Input)
1 SCART adapter (Output)
1 karaoke DVD
1 user manual
Connecting the SilverCrest TM-220
First familiarise yourself with the different sockets and controls.

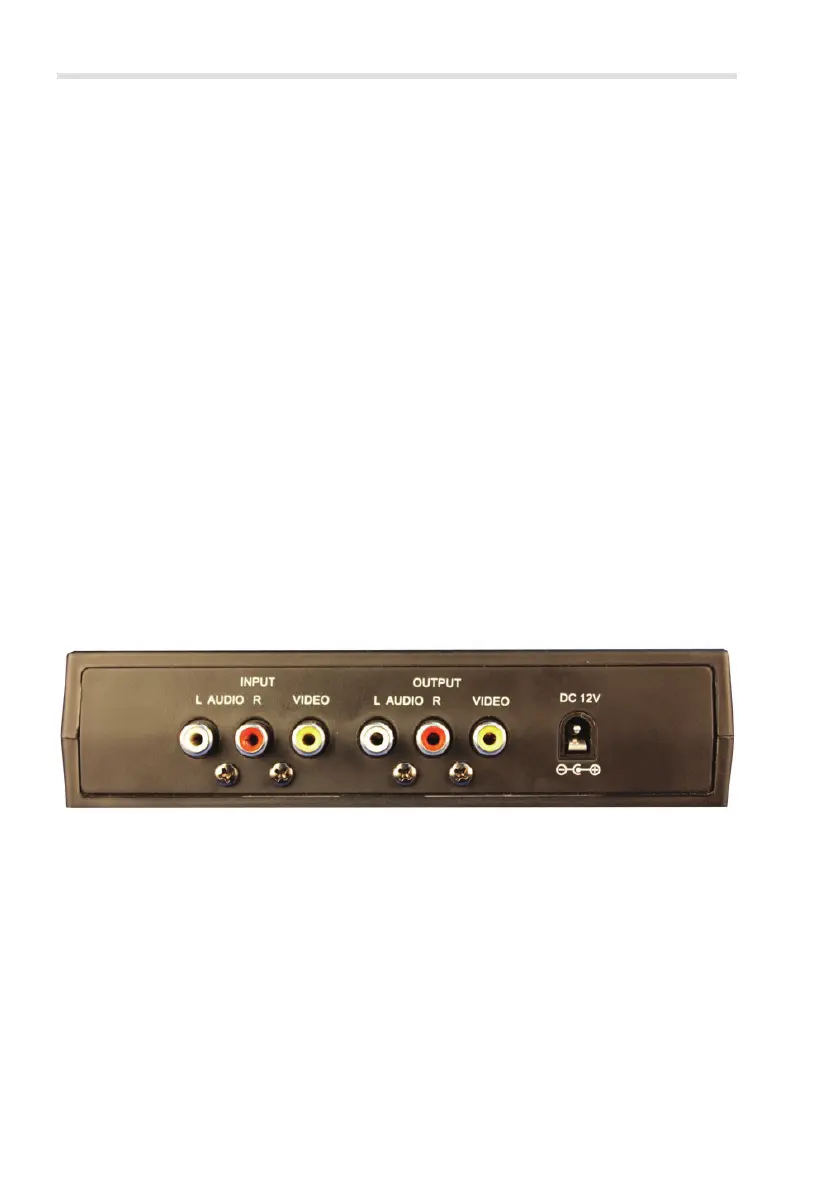

The sockets on the back panel of your SilverCrest TM-220 from left to
right are:
• Group of three RCA sockets (Input) (yellow for video, red for the
right audio channel and white for the left audio channel)
• Group of three RCA sockets (Output) (yellow for video, red for the
right audio channel and white for the left audio channel)
• Power supply socket
