Silverline S550LF - Page 11

SILVER LINE S550
11

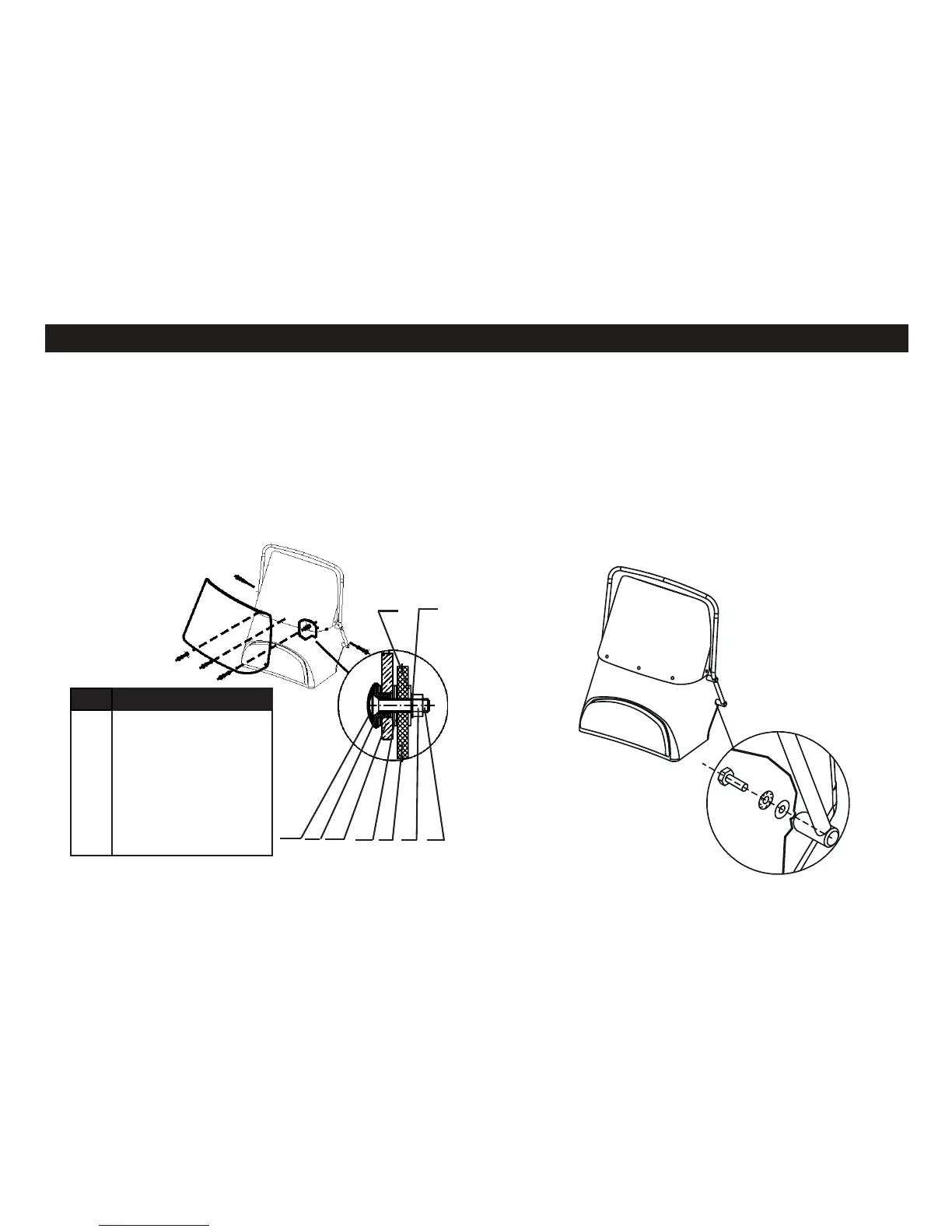

In order to install the windscreen railing onto console perform the next
operations ( Fig. 4 ):
-align holes in the windscreen railing supports with
holes on console overhead part;
-x windscreen railing by means of bolts M12x30, serrated
lock washers and washers from the complete set;
- tighten all bolts.
In order to install the windscreen onto console perform the next
operations ( Fig. 3 ):
-align the windscreen holes with holes on console
overhead part;
-x windscreen by means of screws M6x25, bushs 1,
bushs2, serrated lock washers, washers and nuts M6 from the
complete set;
- tighten all nuts.
6
2
4
3
8
5
7
1
9
Pos. Item
1
2
3
4
5
6
7
8
9
Screw
Bush1
Bush2
Windscreen
Steering console
Cup
Nut
Serrated lock washer
Washer
Fig. 4
Fig. 3
