GETTING FAMILIAR-3
PROPELLERS

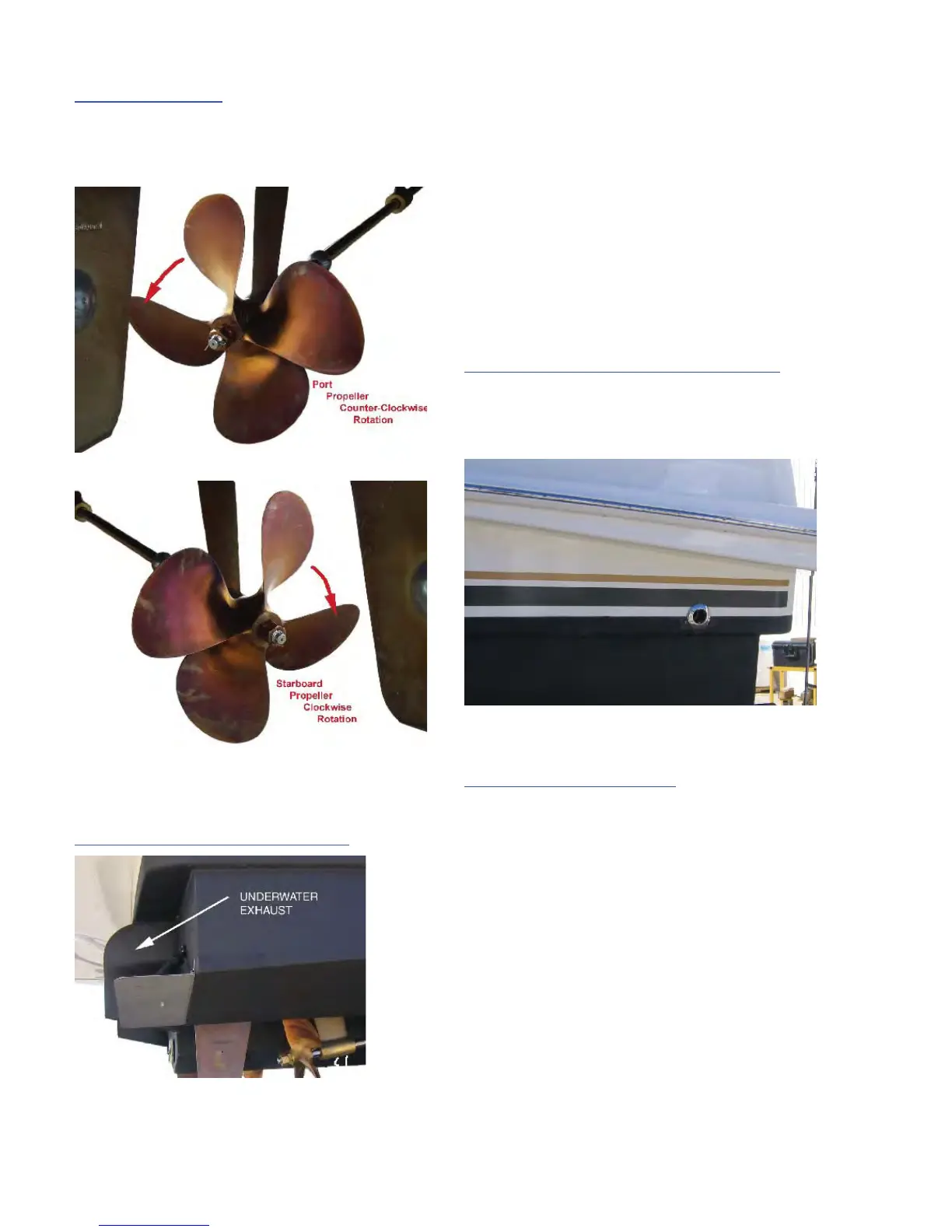

The photographs below display the pro-
peller rotation for the Port and Starboard
sides.
ENGINE EXHAUST PORTS
There are two Underwater Engine Ex-
haust Ports; one for each engine. The Port
Underwater Engine Exhaust Port is lo-
cated on the Port side of the transom and
the Starboard Underwater Engine Exhaust
Port is located on the Starboard side of
the transom. The photograph above dis-
plays the Starboard Underwater Engine
Exhaust Port.
GENERATOR EXHAUST PORT
The photograph below displays the Gen-
erator Exhaust Port. It is located on the
port side of the transom.
DISCHARGE PORTS
The various Discharge Ports (also known
as thru-hull ports) are located on the star-
board and port sides of the hull. Refer to
the Thru-Hull Schematic Drawings in the
SCHEMATICS SECTION of this manual.
