SYSTEM OPERATIONS-21
ELECTRICAL SYSTEM - AC

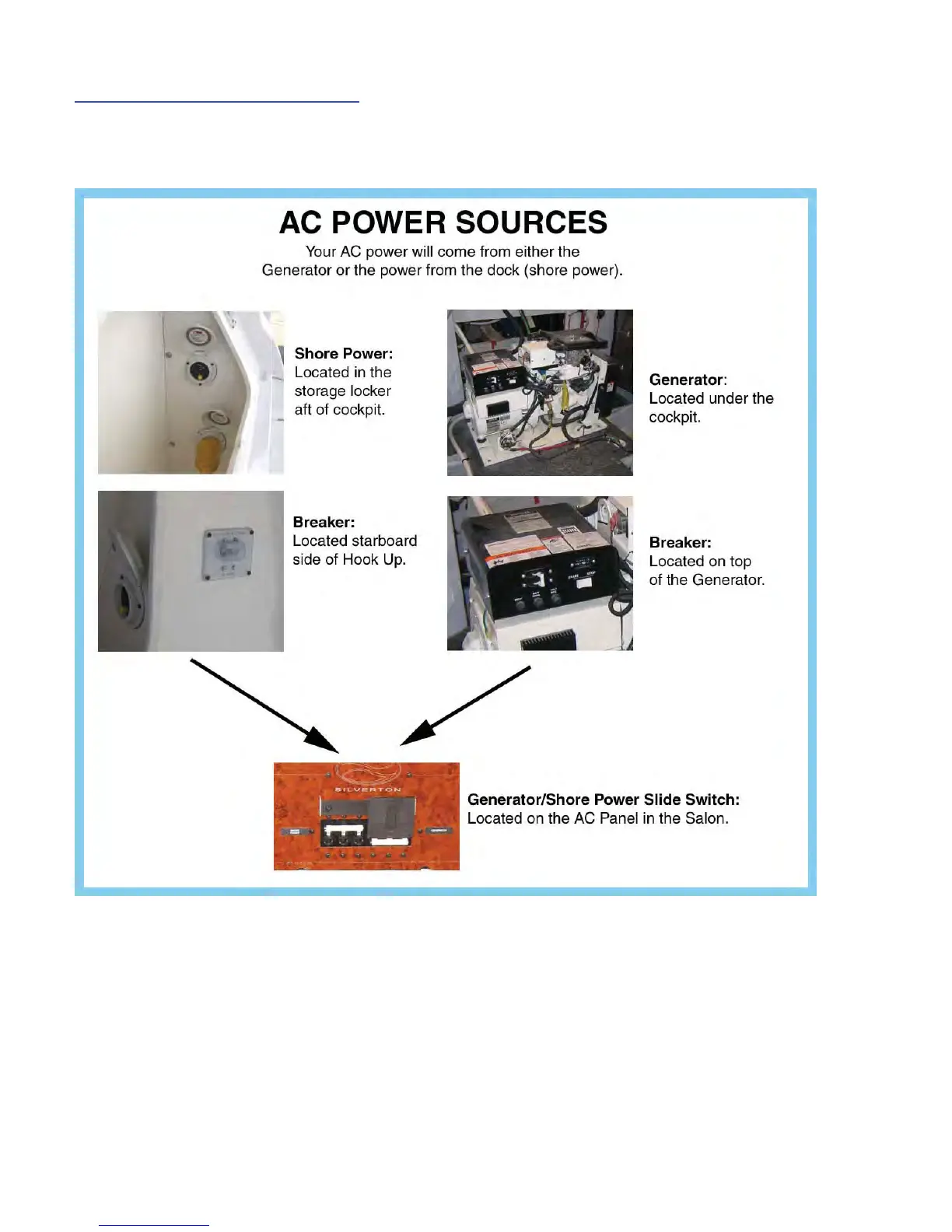

The AC electrical system is a three-wire
grounded system powered by either the
generator (if so equipped) or shore power.
Generator/Shore Power Slide Switch
This Slide allows only one source of AC
Current to enter your AC Panel. This
switch will allow the source of AC Power
to come from either the Generator or the
Shore Hook-Up. The Panel has two sets
of breaker switches. The two sets are:
Generator and Shore Power. The two sets
of switches will be described below.
Generator: The generator set of switches
have the power from the generator coming
into these switches then going out to the
120 Volt AC Panel.
