SECTION 8 Replacement Parts/Part Numbers
Part Number Description
4011424 minION2 (no power supply)
4011425 minION2 (with 100/120VAC Japan / North America power
supply)
4011426 minION2 (with 230VAC Continental Europe power supply)
4011427 minION2 (with 230VAC United Kingdom power supply)
5051406 minION2 power supply only (100/120VAC Japan / North
America)
5051407 minION2 power supply only (230VAC Continental Europe)
5051408 minION2 power supply only (230VAC United Kingdom)
4371099 emitter, standard stainless steel (6 required)
4370760 emitter, long life tungsten (6 required)
4520764 modular cable, 4P4C, 3’ long
4520767 modular cable, 4P4C, 6’ long

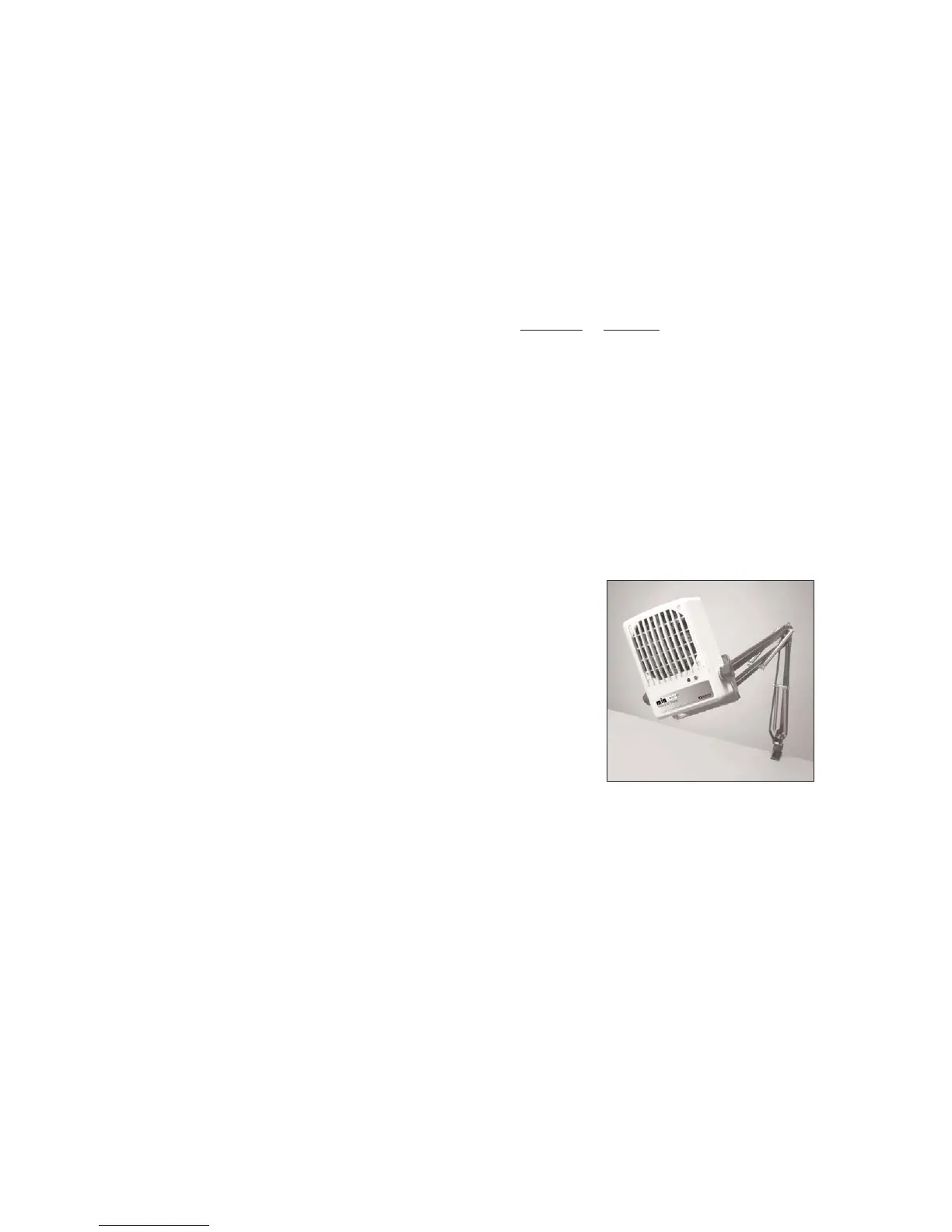

5051141 articulated arm kit
SECTION 3 Features
• Small and compact
• Closed –loop balance control
• Simple to install and operate
SECTION 4 Specifications
OPERATING SPECIFICATIONS
(Balance) Offset Voltage: 0+/-10 V
Discharge time in seconds:
Distance 305 mm 460 mm 610 mm 760 mm 915 mm
(12 in.) (18 in.) (24 in.) (30 in.) (36 in.)
Fan - High 2 sec. 3 sec. 5 sec. 7 sec. 9 sec.
Fan - Low 3 sec. 4 sec. 7 sec. 9 sec. 12 sec.
Offset voltage and discharge time determined as per ANSI/ESD STM3.1 using 6”
x 6”, 20 pF plate (charged plate monitor). Discharge times are in seconds from
1000 volts to 100 volts.
Input Power: 24 VDC, 250 mA, 6W
Power Supply: Universal 100-240 Vac input (IEC320) / 24 Vdc, 750
mA output, suitable to power up to 3 units.
Operating Temperature: 0˚C to 50˚C (32˚F - 122˚F)
Airflow Volume: Fan - High: 42 CFM (1.2 m3/min)
Fan – Low: 21 CFM (0.6 m3/min)
Audible Noise: 52 dB(A) at 610mm (24 in.)
48 dB(A) at 1m (39 in.)
High fan speed, measured perpendicular to air outlet.
ON/OFF: Switch
Fan Speed: Variable, recessed adjustment.
Indicators: Power: green LED, Fault: red LED.
Connectors: Two 4-position, 4-contact (4P4C) modular “handset”
connectors for power, may also be used for daisy
chaining units. Modular cable is included with unit.
Modular connector part numbers: (Amp 5-641334-3,
Hirose TM3P-44P, Kobiconn, 154-UL6164)
