8

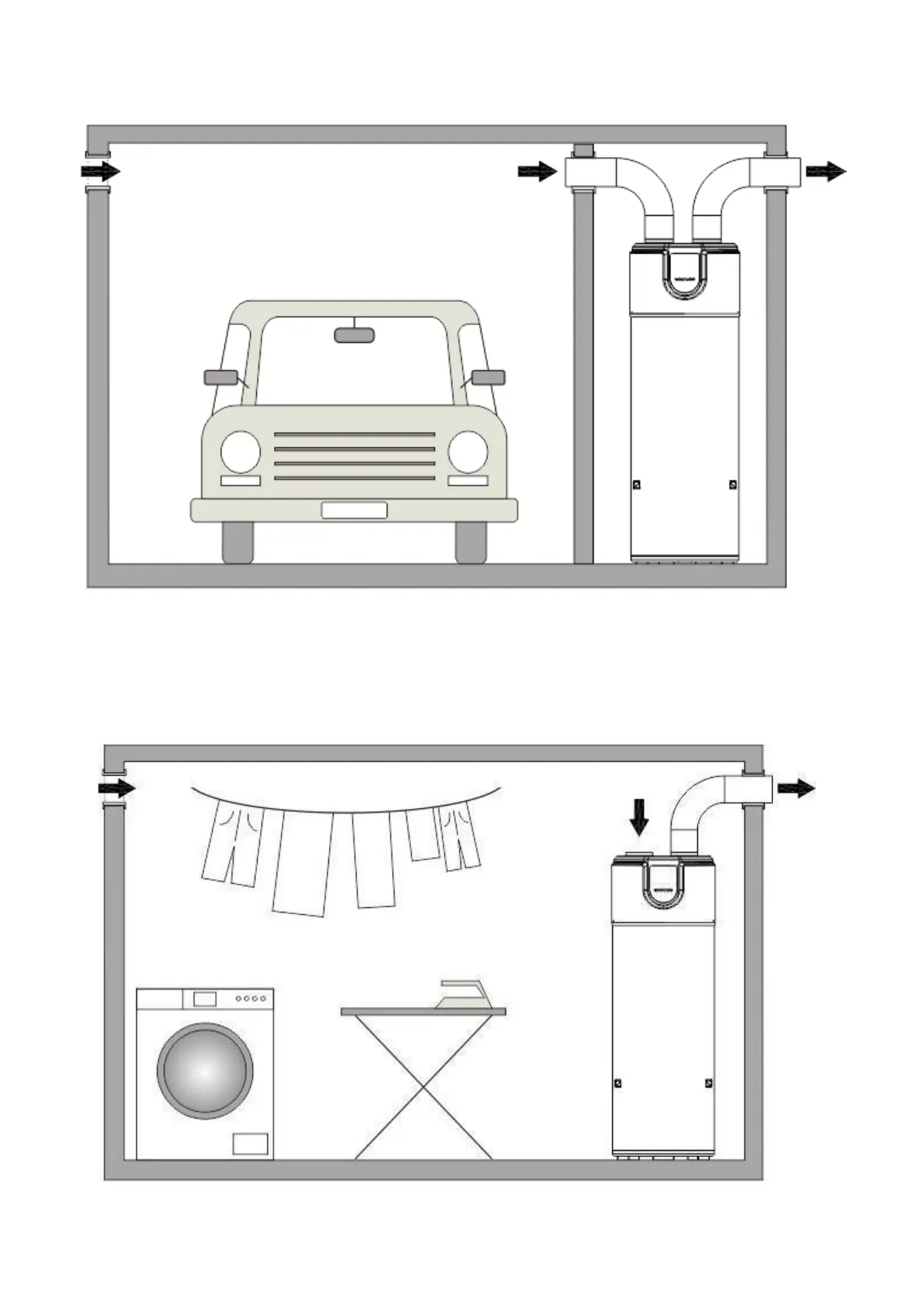

● Example 1.
The appliance installed in garage/outhouse can refresh air. Inlet air from internal duct, outlet air
ducted to outdoor. Total length≤6m.
Fig.5.1
● Example 2.
The appliance installed in utility room can dehumidify air and dry clothes effectively. Inlet air from
room without duct, outlet air ducted to outdoor. Air outlet duct length≤6m.
Fig.5.2
