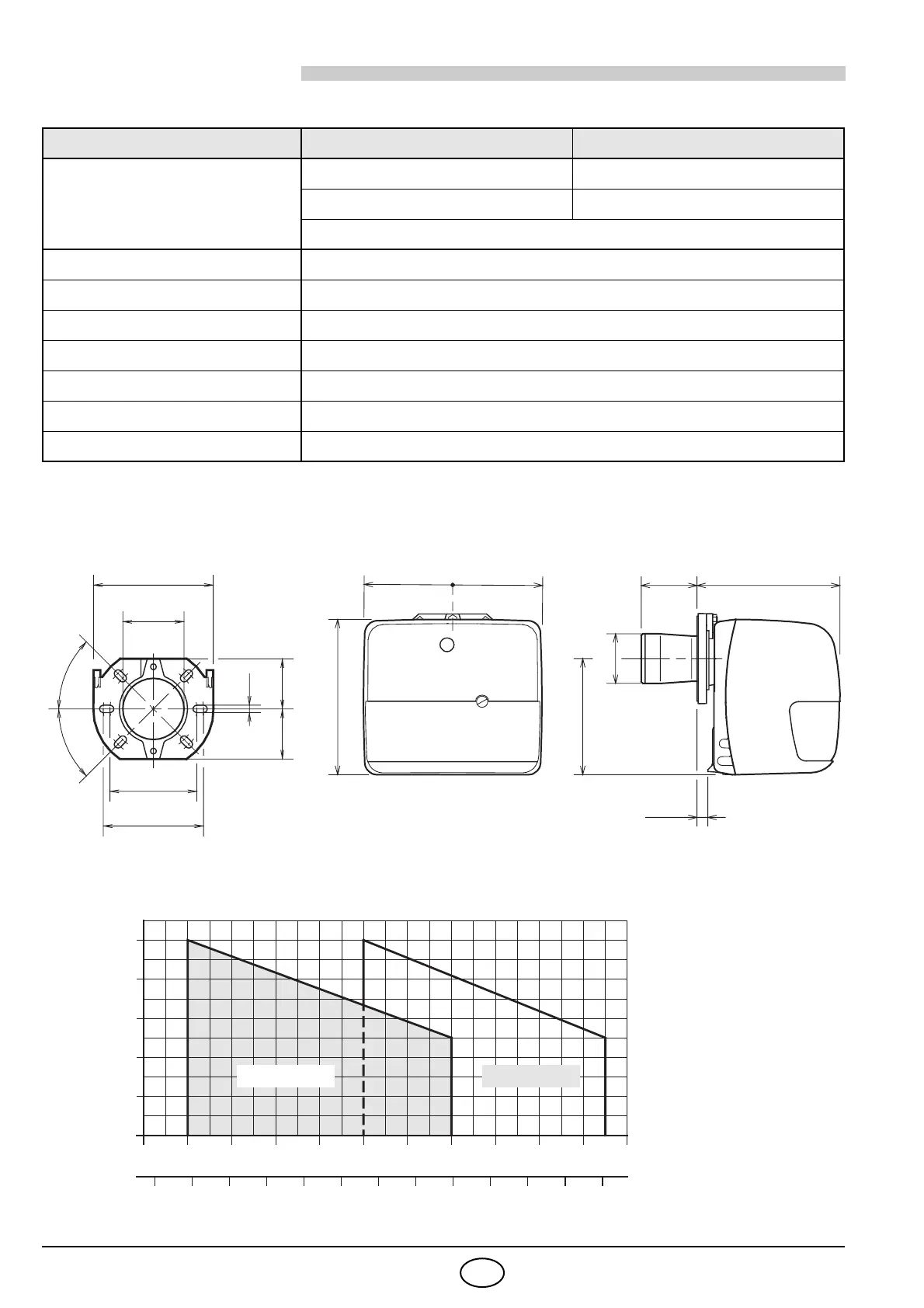

2. TECHNICAL DATA
2.1 TECHNICAL DATA
2.2 OVERALL DIMENSIONS
2.3 WORKING FIELDS
(as EN 267
)
Model MACK 4SP MACK 5SP
Output kg/h 2.0 – 3.2 2.8 – 3.9
Thermal power kW 23.8 – 37.9 33.3 – 46.2
(H
i
= 11.86 kWh/kg)
Fuel Light oil, max. viscosity at 20°C: 6 mm
2
/s
Electrical supply Single phase,
~
50Hz 230V
±
10%
Motor Run current 0.7A – 2850 rpm – 298 rad/s
Capacitor 4
µ F
Ignition transformer Secondary 8 kV – 16 mA
Pump Pressure: 7 – 15 bar
Absorbed electrical power 0.13 kW
Flange Burner
285 86 230
130
=
16
45
°
ø 89
249
11
186
D6262
=
91
72 72
150
45
°
180
D5908
Pressure in the combustion
chamber – mbar
Light oil output – kg/h
Thermal power – kW
D6289
22
1,0
0
0,4
0,2
0,6
0,8
1,8 2 2,2 2,4 2,6 2,8 3 3,2 3,4 3,6 3,8 4
26 30 34 38 42 46
MACK 4SP MACK 5SP
