12

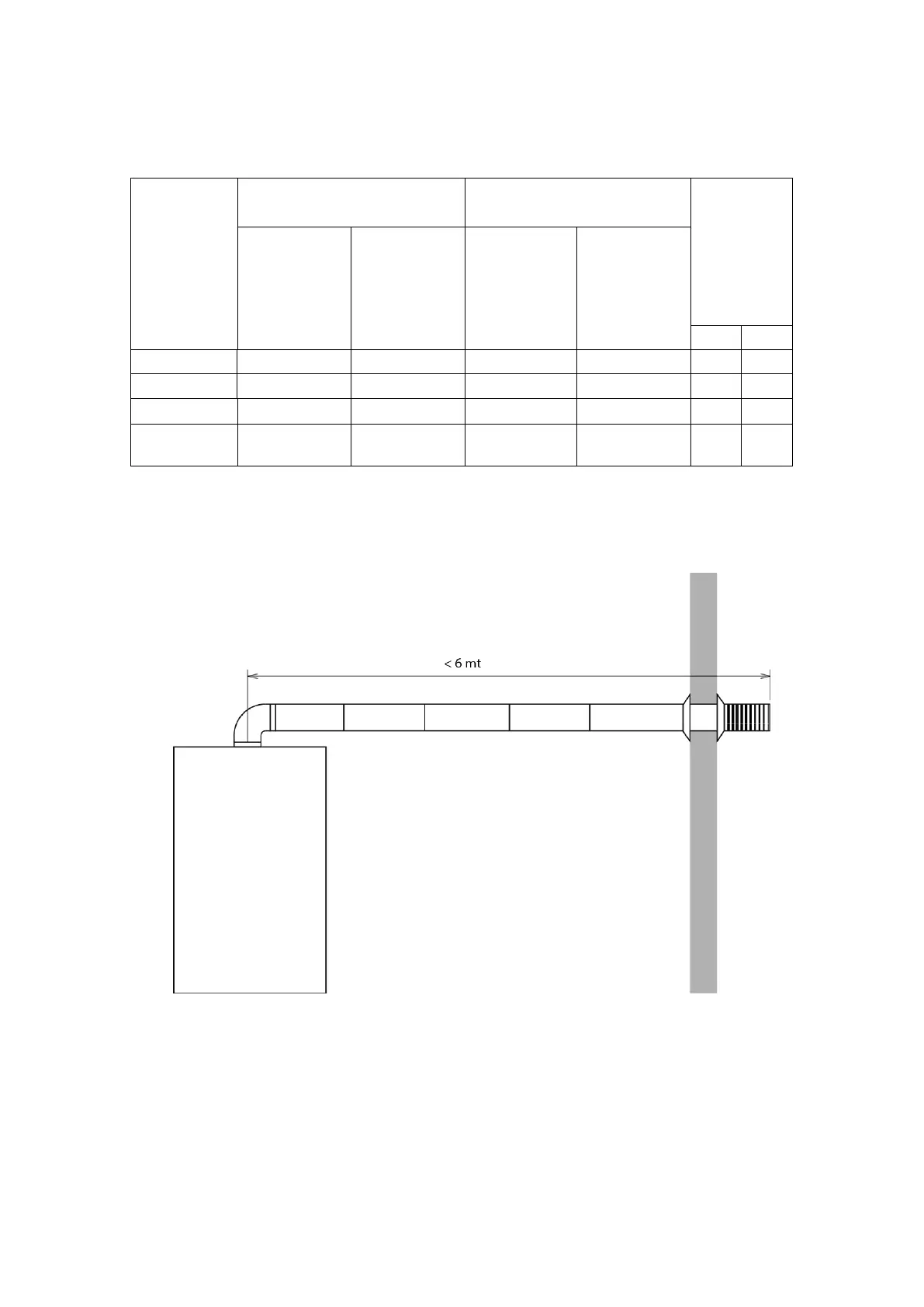

Smoke duct parameters (data for reference only, effective data refers to the actual object).
T
ype of flue
pipe
Length of flue pipe
Diameter of flue pipe (mm)
Maximum
elbow
quantities
can be used
Minimum(m)
Maximum(m)
12L
16L
90°
45°
C13 0.6 6
φ60/100 φ60/100
2 4
C33 0.6 6
φ60/100 φ60/100
2 4
C53
0.6
6
φ
80/80
φ
80/80
2
4
C83*
(*only G20)
0.6
6
φ80/80 φ80/80
2
4
（4
）
This pipe should be inspected and maintained by a qualified person on a regular basis
