SRP9170/80 P25 Portable Radio – User Manual
© ComGroup Australia 2010 Page 30 TNM-U-E-0091 1.4a

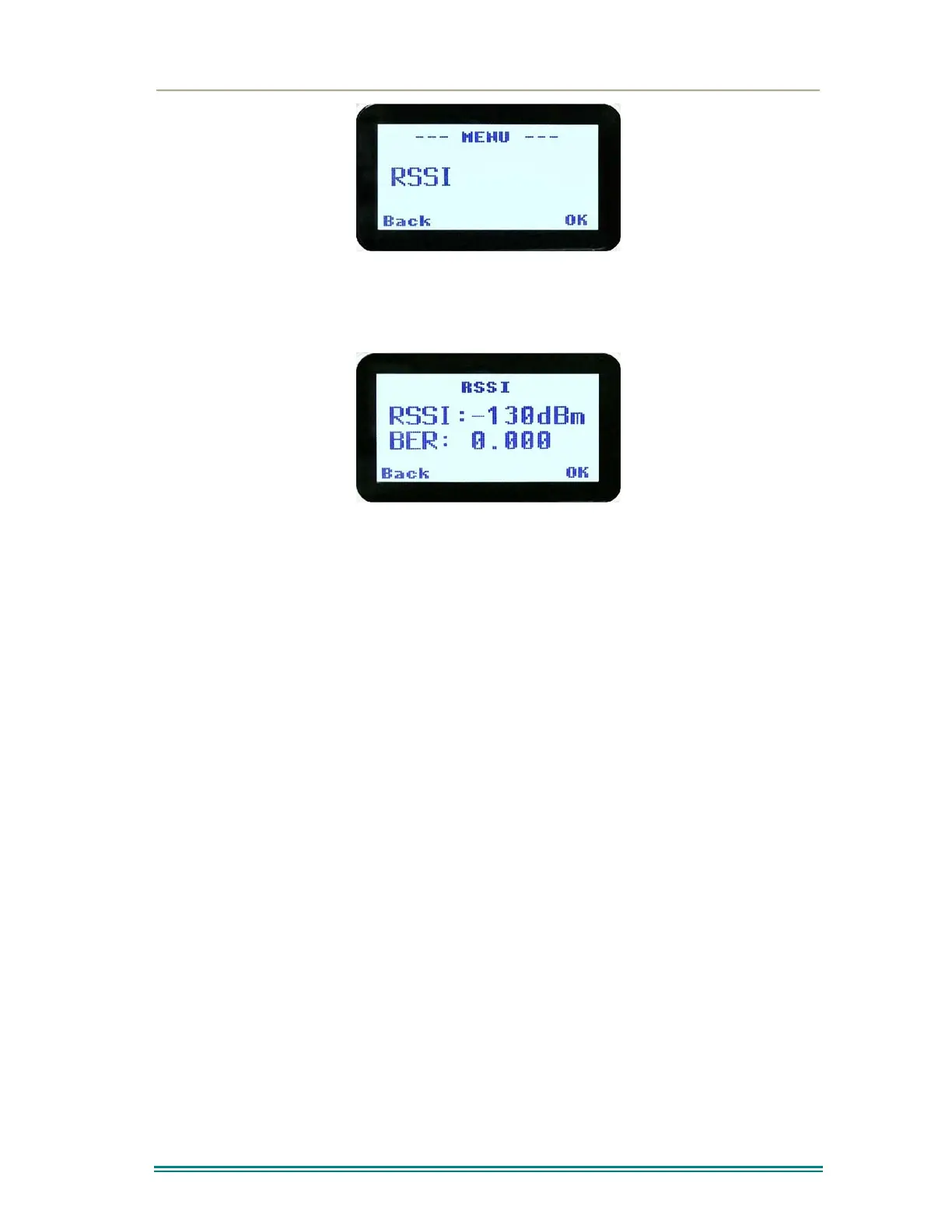

Press the “OK” key for the “RSSI“ screen
If a Digital channel is selected BER will be displayed.
The RSSI/BER will be displayed until either the “M” key is pressed to return to the next
highest menu level or the “OK” key is pressed which will return to the main channel menu.
A lower RSSI value indicates a stronger signal, i.e. –80dBm is a stronger signal than –
100dBm.
