SRM9000 ALIGNMENT TNM-M-E-0019 Issue 1
Page 6 of 13
Alignment Procedure
Radio alignment must be done in the sequence detailed in the following paragraphs. This alignment
assumes that the radio is functioning normally.

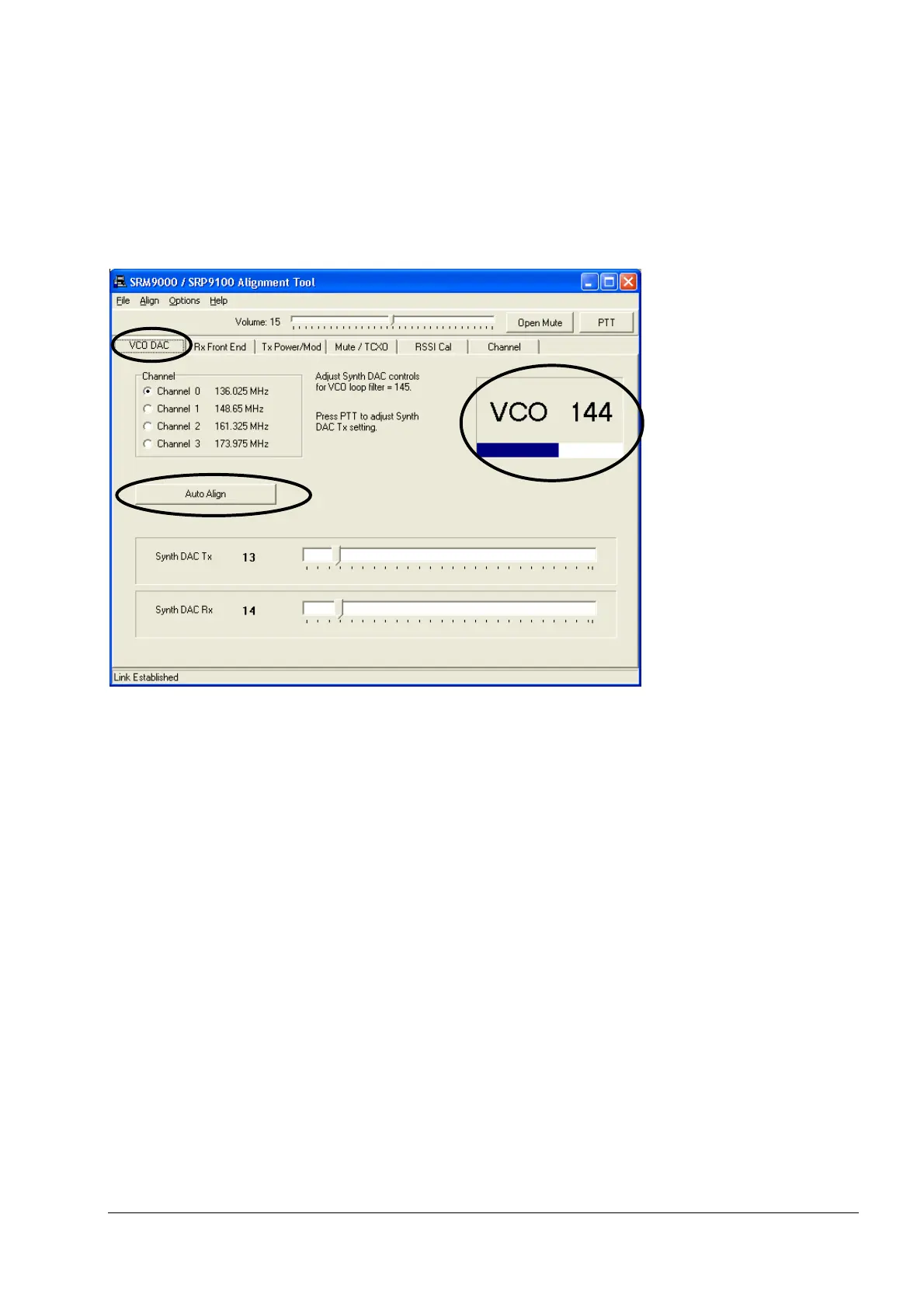

VCO DAC Alignment
1.
Select the VCO DAC page.
2.
Select Auto Align. The Synth DAC Rx slider will automatically adjust its value for each receiver
alignment frequency to set the VCO loop filter value between 140 and 150.
3.
Select PTT and then select Auto Align. The Synth DAC Tx slider will automatically adjust its value for
each transmitter alignment frequency to set the VCO loop filter value between 140 and 150.
