MRMap Development Team 21/07/2008

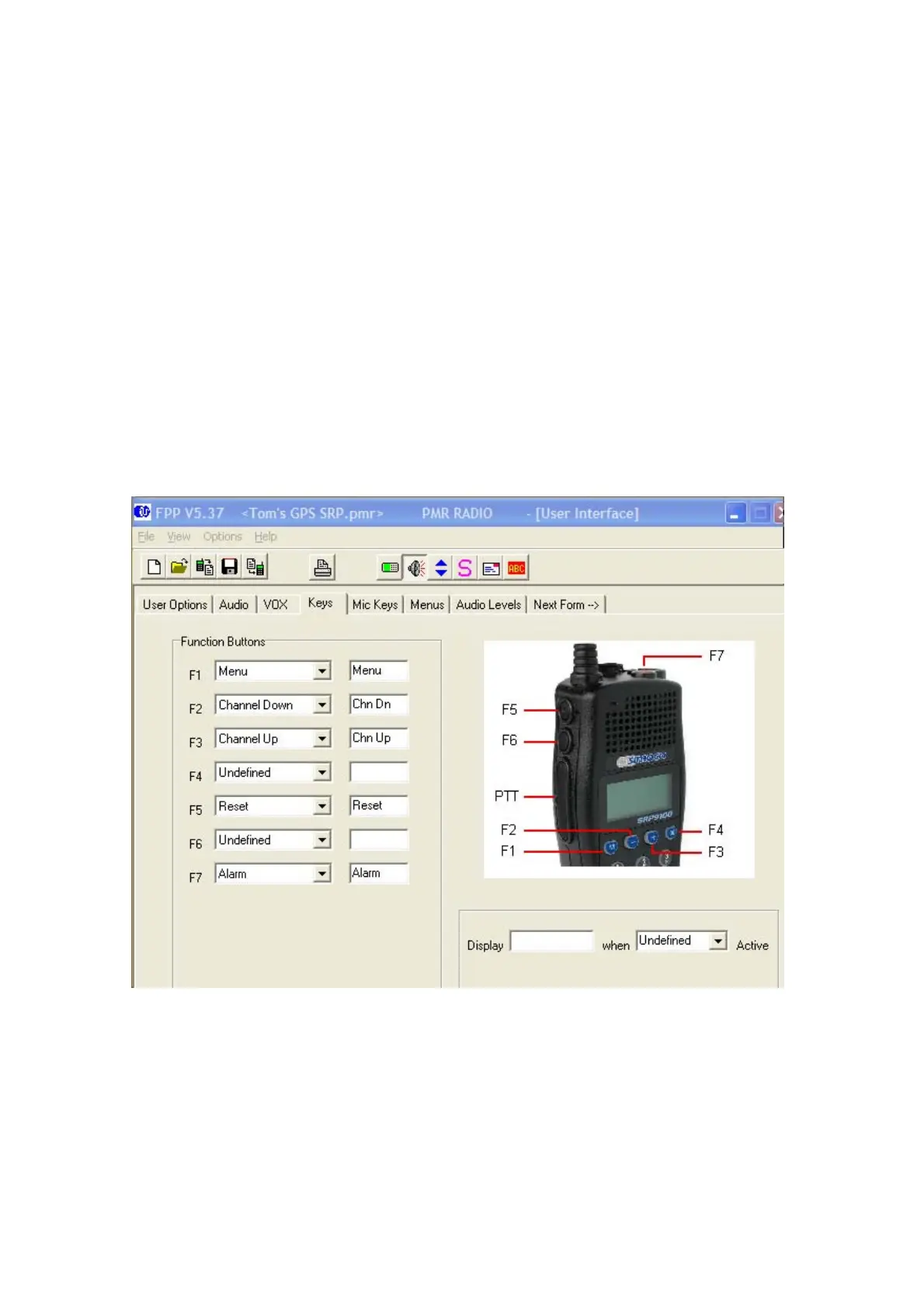

All the function buttons from F1 to F7 can be individually programmed for a variety
of functions as can those on the speaker microphone. If programmed they may or
may not be subject to the condition of the KeyPad Lock depending on the function
selected and other parameters.
Selecting any option box and pressing F1 will bring up the context help file.
Here the + and - keys are programmed for sequential channel changing and the
‘M’ button (F1) is programmed to enter the menu list. These are fairly obvious uses
but other keys can be programmed to do the same job if required. If not needed,
the buttons are left programmed as ‘Undefined’.
Note: ‘Reset’ is not the same as ‘OK’ as far as the radio is concerned.
Buttons on the speaker microphone can be programmed to duplicate any of these
functions or to allow other functions to be accessed.
