Simonelli APPIA II - Schema Caldaia

68
ELEMENTO
ELEMENT
ELEMENT
QTÀ
QTY
QTE
NUMERO PARTE
PART.NO
NUM.COMPOSANT
DESCRIZIONE
DESCRIPTION
DESCRIPTION
MATERIALE
MATERIAL
MATERIAU
1 1 00015120
Virola caldaia D.180 1Gr SP 1.2
Virola boiler D.180 1Gr SP 1.2
Virole chaudière D.180 1Gr SP 1.2
CU DHP 99.9
2 1 00010121
Fondo Bombato caldaia D.180 SP 1.5
Curved bottom of the boiler D.180 SP 1.5
Fond Bombé chaudière D.180 ép. 1.5
CU DHP 99.9
3 2 00061462
Raccor
do T scambiatore Appia Mod
.
Exchanger fitting T Appia Mod.
Raccord en T échangeur Appia Mod.
CU DHP 99.9
4 1 00061551
Gomito a saldare 3/8 M
Elbow for welding 3/8 M
Coude à souder 3/8 M
OT57 CW510L
5 5 00030251
Attacco G 3/8'' Maschio
Coupling G3/8'' Male
Prise 3/8 '' Mâle
OT57 CW510L
6 1 00015090
Coppa D.180 PR 2013
Bevel gear D.180 PR 2013
Cou
p
e D.180 PR 2013
OT57 CW510L
7 1 00063130
Flangia Resistenza 4 fori 2013
Heater El. Flange 4 holes 2013
Flasque Resistance 4 trous
OT57 CW510L
8 1 00160390
Tubo scam biatore Appia 1GR
Appia 1GR heat exchanger tube
Tube échangeur Appia 1GR
CU DHP 99.9
9 1 00030271
A
ttacco G1/4'' F passante
Coupling G1/4'' F bypass
Prise G1/4'' F pontage
OT57 CW510L
10 2 00030631
Attacco 1/4'' Maschio
Coupling 1/4'' Male
Prise 1/4'' Mâle
OT57 CW510L
VOLUME
4,4 LT
TS
130.5° C
P.V.S.
1.8 Bar
PT
2.7 Bar
FLUIDO
FLUID
FLUIDE
H2O
Materiale
Material
Materiau
Trattamento
Treatment
Treatment
Tolleranza
Tolerance
Tolerance
Scala
Scale
Echelle
A2
Rame,Ottone
Copper,Brass
Cuivre,Laiton
Decapaggio
Pickling
Décapage
1:4
Designer
M.F.
ecidoCnoitpircseD noitpircseD enoizircseD
6741009 illenomiS avouN 0
Elenco parti List of Parts Liste des composants
DATI PROGETTO DIRETTIVA PED 97/23/CE
PROJECT DATA FOR DIRECTIVE PED 97/23 CE
DONNEES PROJECT DIRECTIVE PED 97/23 CE
ataDnoitpircseD noitpircseD enoizircseD
Caldaia Boiler Chaudiere 1 Gr Appia D.180 2 coppe 15/05/201 3

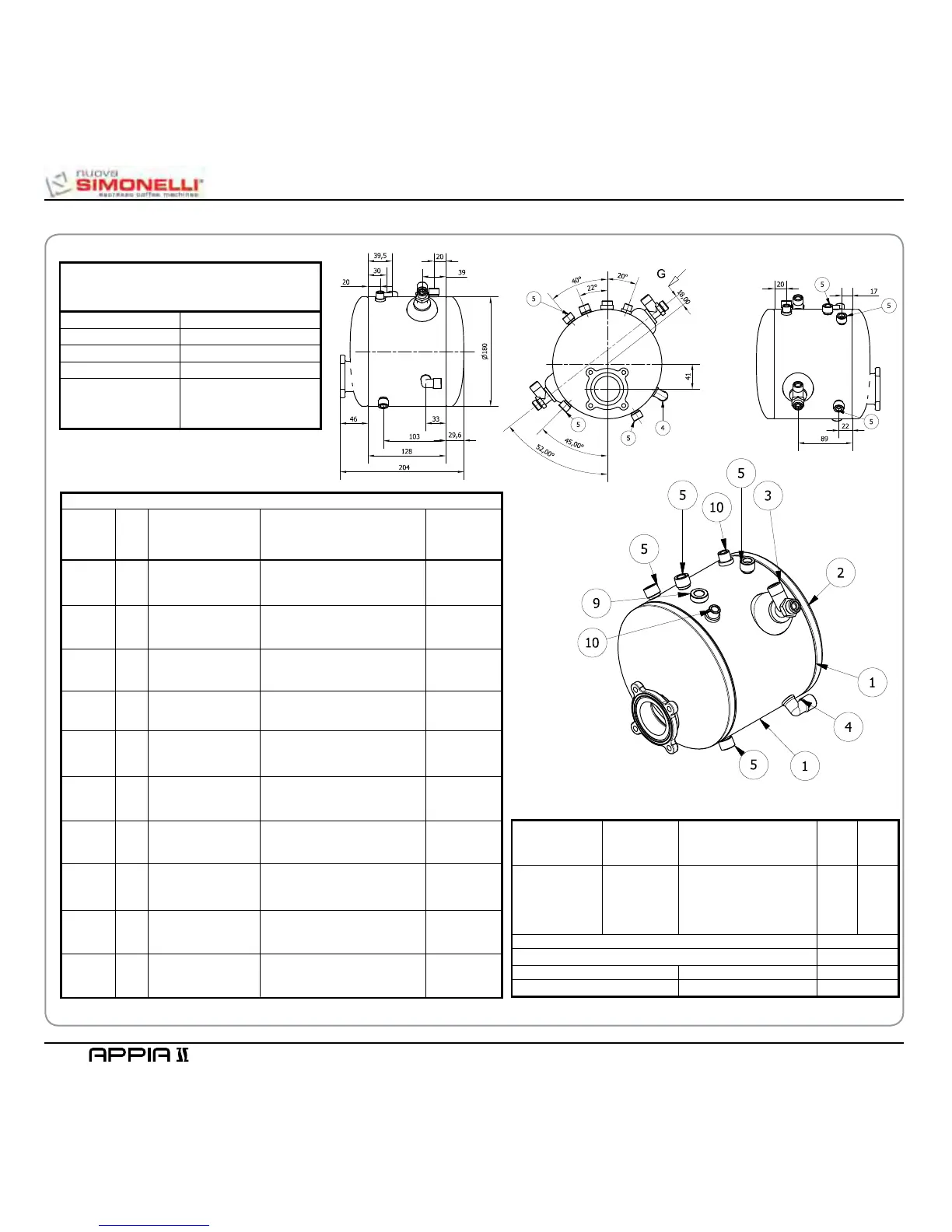

Fig. 34
SCHEMA CALDAIA / BOILER DIAGRAM / SCHÉMA DE CHAUDIÈRE
