2.1. Installation based on an engine version classic line(+):
Required tools:
• Torx 20 wrench
• 8 mm allen key
• optional: ISIS crank puller (if you can`t remove the crank per hand)
• optional: flat not pliers
• Tool for removing the sprocket nut ("spider-tool")
Unscrew the 8 mm allen key (picture 1). Remove the crank. If you can`t remove the crank by hand, take a crank
puller. Remove the sprocket nut with the aid of the spider-tool (picture 2). Remove the 3 Torx screws with a socket
(picture 3).
Now the engine cover can be removed. Pull the plug of the speed sensor, if necessary with a flat nose pliers (picture
4). Close the industrial plug of the sIMPLEk at the position of the previously unplugged speed sensor. The supplied
rubber tube has to be put off the plug of the speed sensor until the sealing blades (picture 8). Afterwards the speed
sensor and the male connector have to be connected (picture 8). The polarity does not need to be considered.

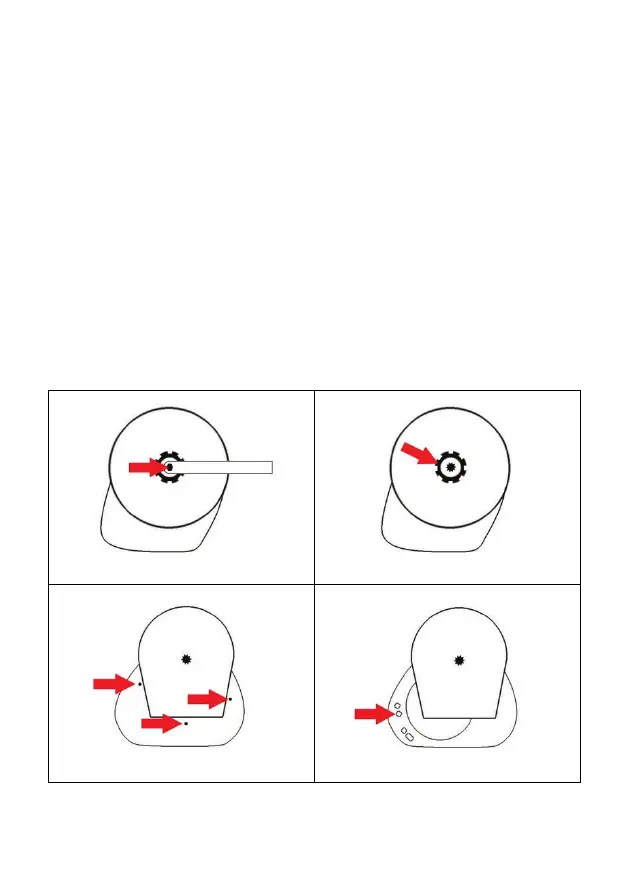

picture 1
