2.2. Installation based on an engine version Bosch Active Line up to 2017
and Performance Line (CX) up to 2019:
Required tools:
• Torx 20 wrench
• 8 mm allen key
• optional: ISIS crank puller (if you can`t remove the crank per hand)
• optional: flat not pliers
Unscrew the 8 mm allen key (picture 5). Remove the crank. If you can`t remove the crank by hand, take a crank
puller. Remove the 3 Torx screws with a socket (picture 6). Now the engine cover can be removed. If necessary, pull
the plug speed sensor with a flat nose pliers (picture 7).
Now close the industrial plug of the sIMPLEk at the position of the previously unplugged speed sensor. The supplied
rubber tube has to be put off the plug of the speed sensor until the sealing blades (picture 8). Afterwards the speed
sensor and the male connector have to be connected (picture 8). The polarity does not need to be considered.

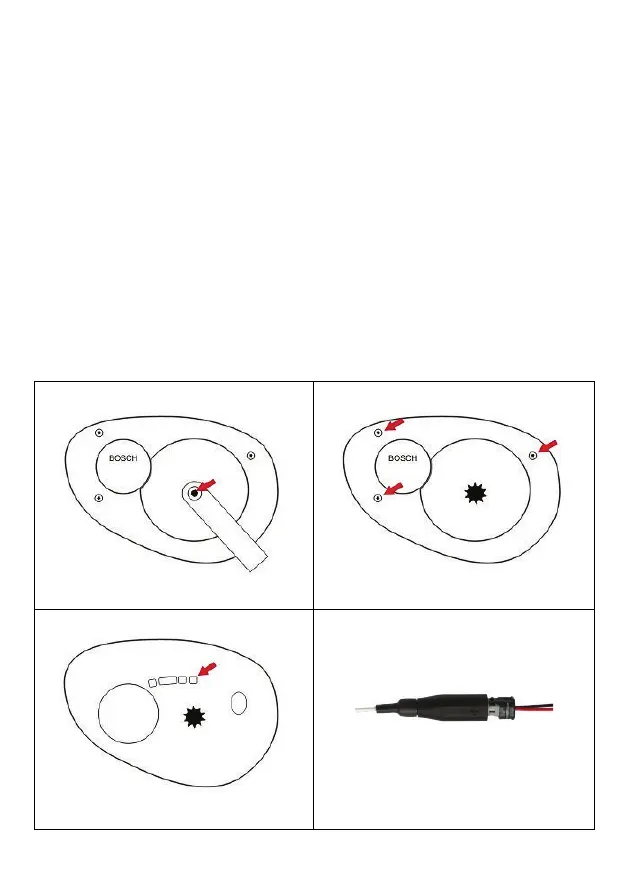

picture 5
picture 6
picture 7
picture 8
