2.2. Installation based on an engine version Bosch Active Line (Plus) from
2018 and Performance Line from 2020:
Required tools:
• Torx 20 wrench
• optional: flat not pliers

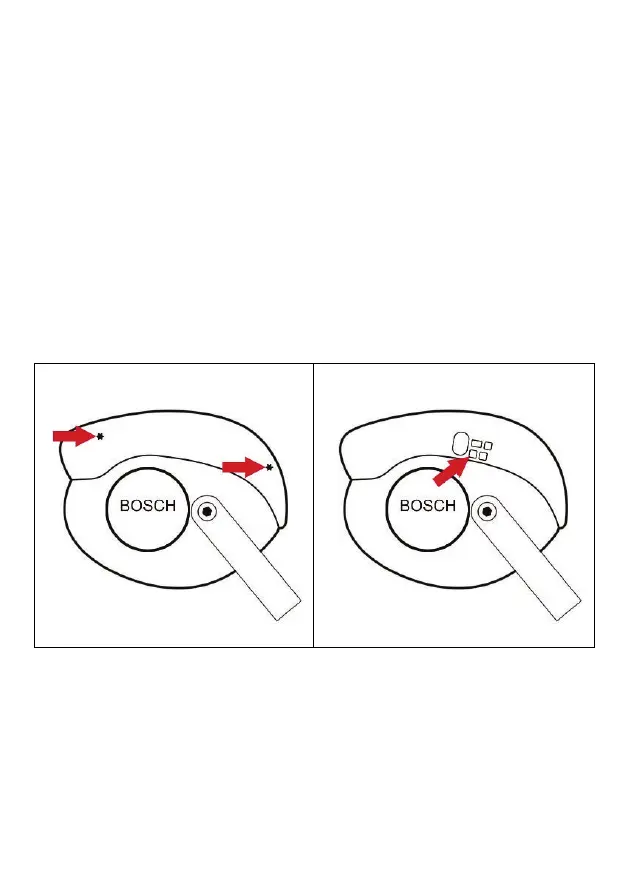

Remove the two torx screws with the socket (pic 9). Now the engine cover can be removed. If necessary, use flat-
nosed pliers to pull out the speed sensor connector (Figure 10).
Now connect the industrial plug of the sIMPLEk to the position of the previously unplugged speed sensor. The speed
sensor is then connected to the connector of the sIMPLEk (Figure 8). The polarity does not need to be taken into
account.
picture 9
picture 10
