2.3. Installation based on an engine version Yamaha PW:
Required tools:
• 3 mm allen key
• 6 mm allen key
• small screwdriver

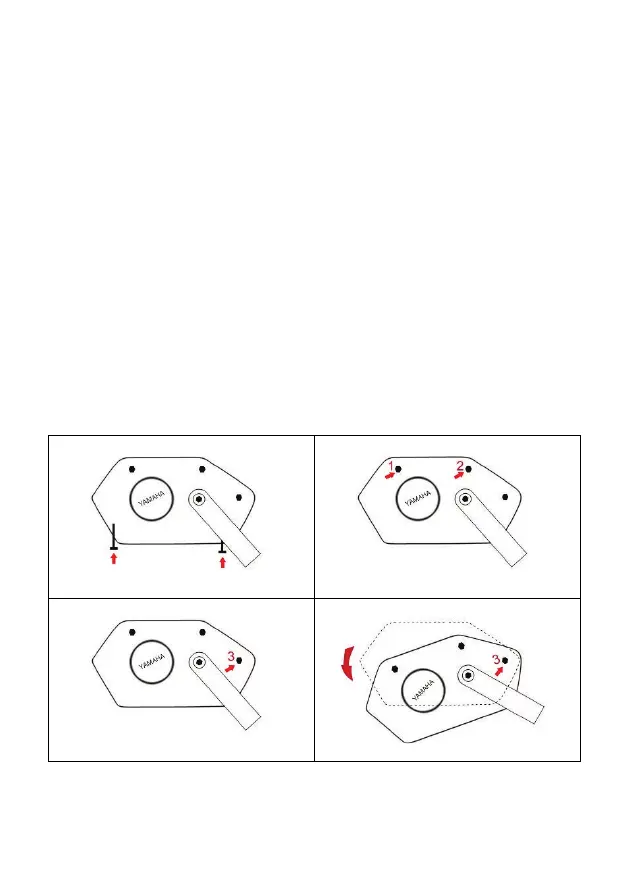

Unscrew the three 3 mm allen screws (picture 15). It is possible that these are provided with a screw-locking device.
In this case, heat the screws first.
Remove the two 6 mm allen screws 1 and 2 (picture 16). Unscrew the third 6 mm allen screw (picture 17) as far as
possible until the motor can be swung out of the frame (picture 18). Now you can see the plug connections.
Disconnect the connector of the speed sensor by pressing the detent with the small screwdriver.
Now close the sIMPLEk between motor and speed sensor. Ensure that the connectors are correctly seated (audible
clicking noise when snapping into place).
Then the motor can be fixed in the frame again and all screws can be installed.
picture 15
picture 16
picture 17
picture 18
