2.4. Installation based on an engine version Brose:
Required tools:
• Torx 20 wrench
• 8 mm allen key
• crank puller (if you can`t remove the crank per hand)
• optional: flat nose pliers

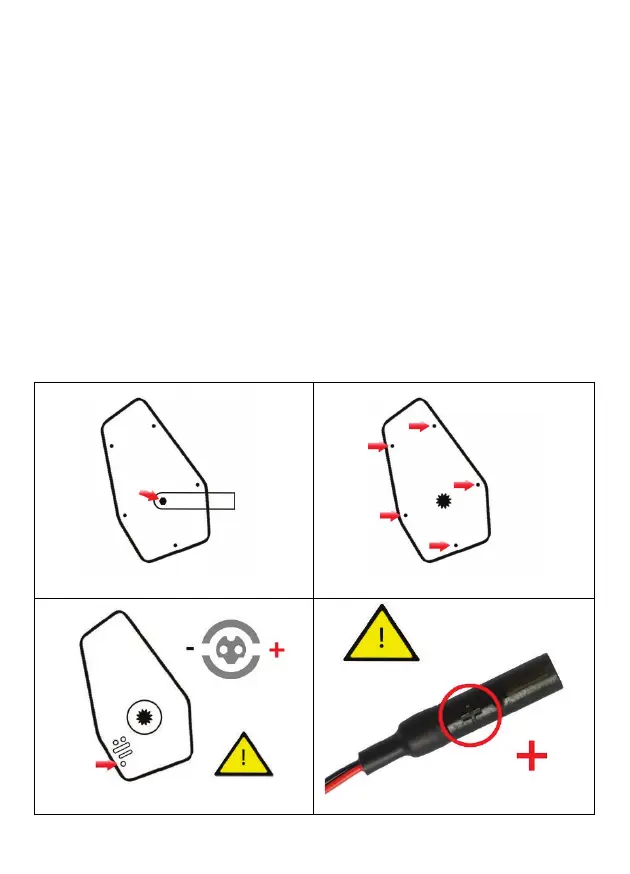

Unscrew the 8 mm allen key (picture 19). Remove the crank. If you can`t remove the crank by hand, take a crank
puller. Remove the 5 Torx screws with a socket (picture 20). Now the engine cover can be removed. If necessary,
pull the plug speed sensor with a flat nose pliers (picture 21).
Now connect the motor-side plug (red and black cable, Figure 18) of the sIMPLEk to the position of the previously
unplugged speed sensor. Pay attention to the polarity of the plug. Figure 21 shows the polarity of the slot on the
motor. Figure 22 shows the polarity of the plug on the sIMPLEk. The speed sensor must then be connected to the
second plug of the sIMPLEk (2 white cables).
picture 19
picture 20
picture 21
picture 22
