Simplex 2120 - Page 34

FROM
FIG.
6A
Y
PRESS THE RESET SWlTCH
(SWS) ON THE ET CPU
REFERENCE.
1
I
NO
FIG.
U
38
NOTE
Once you press SWS, it will take about 15 seconds for
the ET to come back on line (if its going to).
I
ET
CPU
BOARD
RED LEAD OF,
VOM TO PIN 2
OF IC16
TO BLACK LEAD

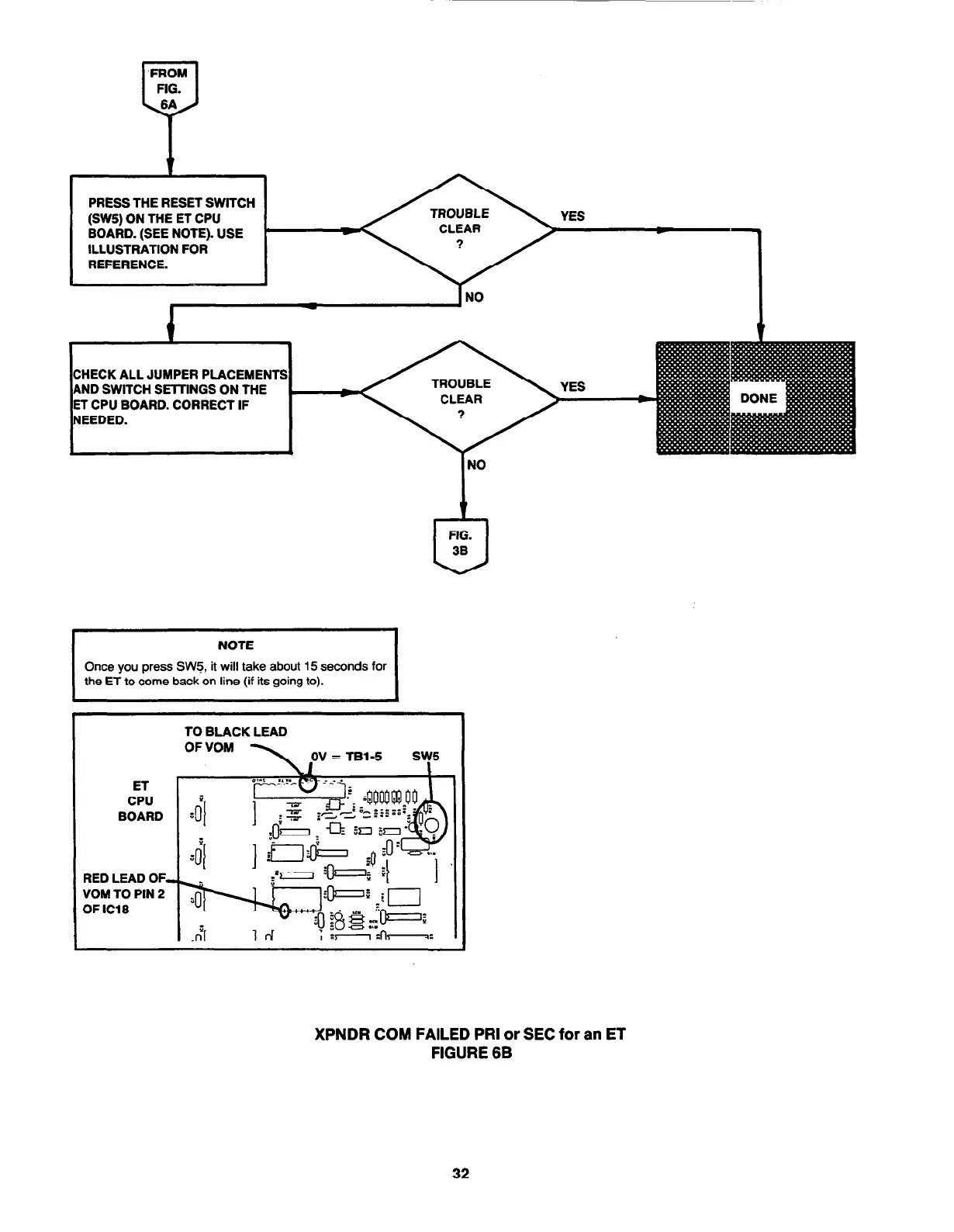

XPNDR COM FAILED PRI or SEC for an ET
FIGURE 6B
