Requirements,
Continued
Maximum Wire Lengths
(Continued)
Communications

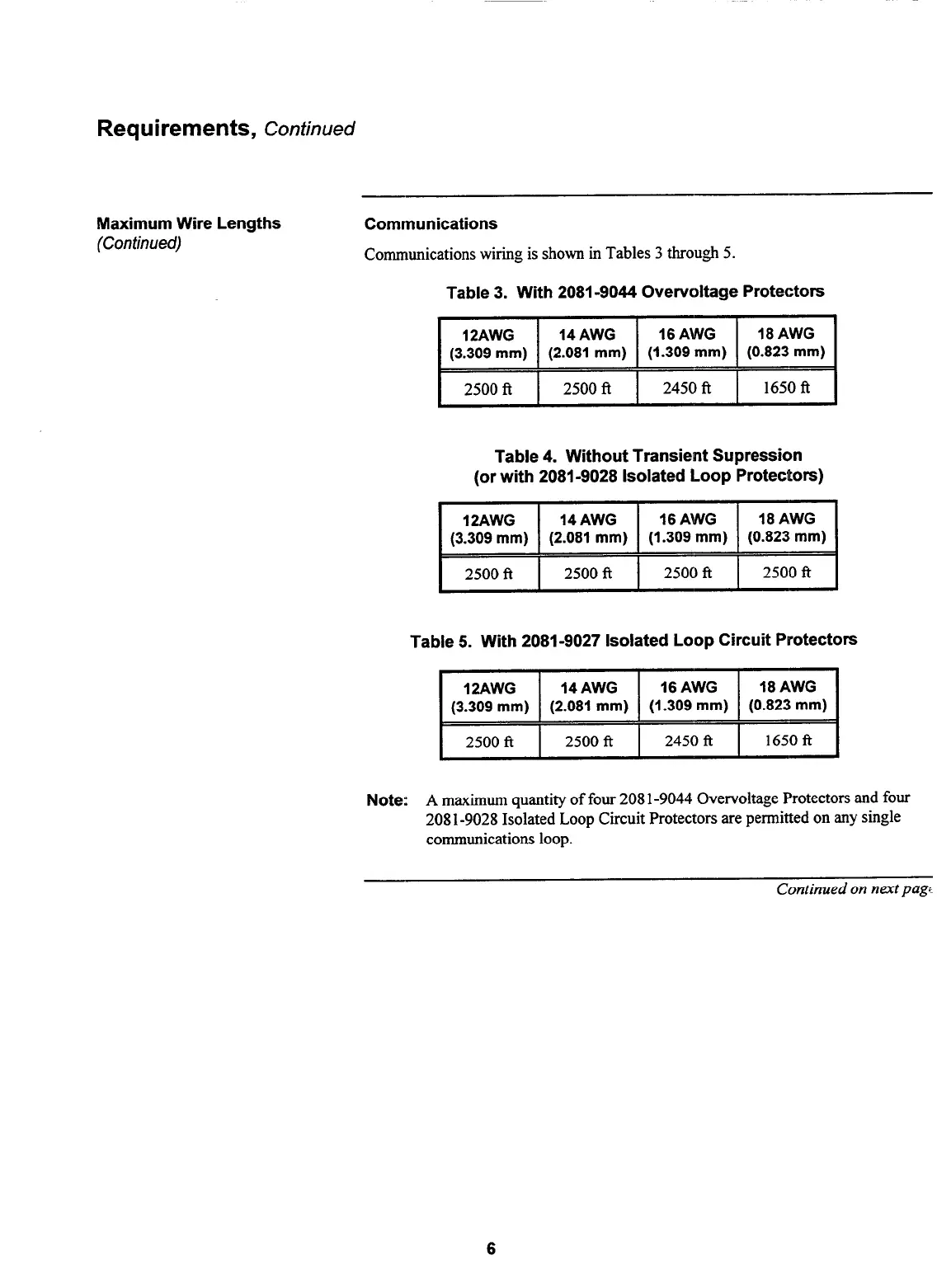

Communications wiring is shown in Tables 3 through 5.
Table 3. With 2081-9044 Overvoltage Protectors
Table 4. Without Transient Supression
(or with 2081-9028 Isolated Loop Protecltors)
I
14AWG
I
16 AWG
I
18 AWG
(2.081 mm) (1.309 mm) (0.823 mm)
I
Table 5. With 2081-9027 Isolated Loop Circuit Protectors
12AWG
14 AWG 16 AWG
18 AWG
(3.309 mm) (2.081 mm) (1.309 mm) (0.823 mm)
Note: A maximum quantity of four 2081-9044 Overvoltage Protectors and four
2081-9028 Isolated Loop Circuit Protectors are permitted on any single
communications loop.
Continued on next
6
To Next Page
