Simplex TrueAlert 4009-9401 User Manual

IDNet Communications Input
IDNet Addressable Communications Compatible.
For use with the Simplex 4010 Fire Alarm Control Panel,
up to five TrueAlert Addressable Controllers can be
controlled on a single IDNet communications channel
with each requiring only one point address. Each
TrueAlert Addressable Controller SLC channel can be
individually controlled by using 4010 custom control.
Each TrueAlert SLC channel can provide horn control
selected as Temporal pattern, March Time pattern (60 or
120 bpm), or Steady On.
Manual Control. Individual TrueAlert SLC channels
can be manually controlled from the 4010 for service
operations or for manual override.
Trouble Communications. The 4010 receives
TrueAlert Addressable Controller troubles to include:
device supervision (reported as a channel trouble), power
trouble, battery status, and earth detect.
Optional IDNet Repeater Modules. IDNet
communications can be repeated with the optional IDNet
Repeater Module or with the optional Fiber Optic
Receiver Module. Up to 100 of the IDNet channel points
can be repeated once (see illustrations below). Repeated
IDNet communications also support the “device level”
earth fault location utility of the host panel.
4 S4009-0003-10 9/2015
POWER
BEFORE
SERVICING
CAUTION
DISCONNECT
4009 IDNet NAC EXTENDER
TM
IDNet devices and additional
TrueAlert Addressable Controller(s)
ALARMFIRE
PULL DOWN
SIMPLEX TIME RECORDER CO.
4090-9101
MONITOR ZAM, CLASS B
INST AL . INSTR . 574 - 183
DATE CODE:
1
5
6
7
8
1
2
3
4
1
2
3
4
5
6
7
8
+ 24V
0V
+IDNET
- IDNET
ZONE PWR +
ZONE PWR -
IDC +
IDC -
ALARMFIRE
PULL DOWN
SIMPLEX TIME RECORDER CO.
4090-9101
MONITOR ZAM, CL ASS B
INSTA L. INS TR . 574 -1 83
DATE CODE:
1
5
6
7
8
1
2
3
4
1
2
3
4
5
6
7
8
+ 24V
0V
+IDNET
- IDNET
ZONE PWR +
ZONE PWR -
IDC +
IDC -
FI RE ALARM
CO NT RO L
DI SCO N NECT
PO W ER BEFO RE
SERVICI NG
CAUT I O N
** SYSTEM IS NORM AL **
12:02:15pm Mon 9-Feb-98
SUPV
ACK
SYSTEM
SUPERVISO RY
ALARM
ACK
FIRE
ALARM
TRO UBLE
ACK
SYSTEM
TRO UBLE
ALARM
SILENCE
ALARM
SI LENCED
SYSTEM
RESET
AC
PO W ER
TrueAlert Addressable Controller
with optional internal IDNet Repeater
Repeated
IDNet Channel:
up to 100 devices maximum on repeater output,
250 devices total on IDNet Channel

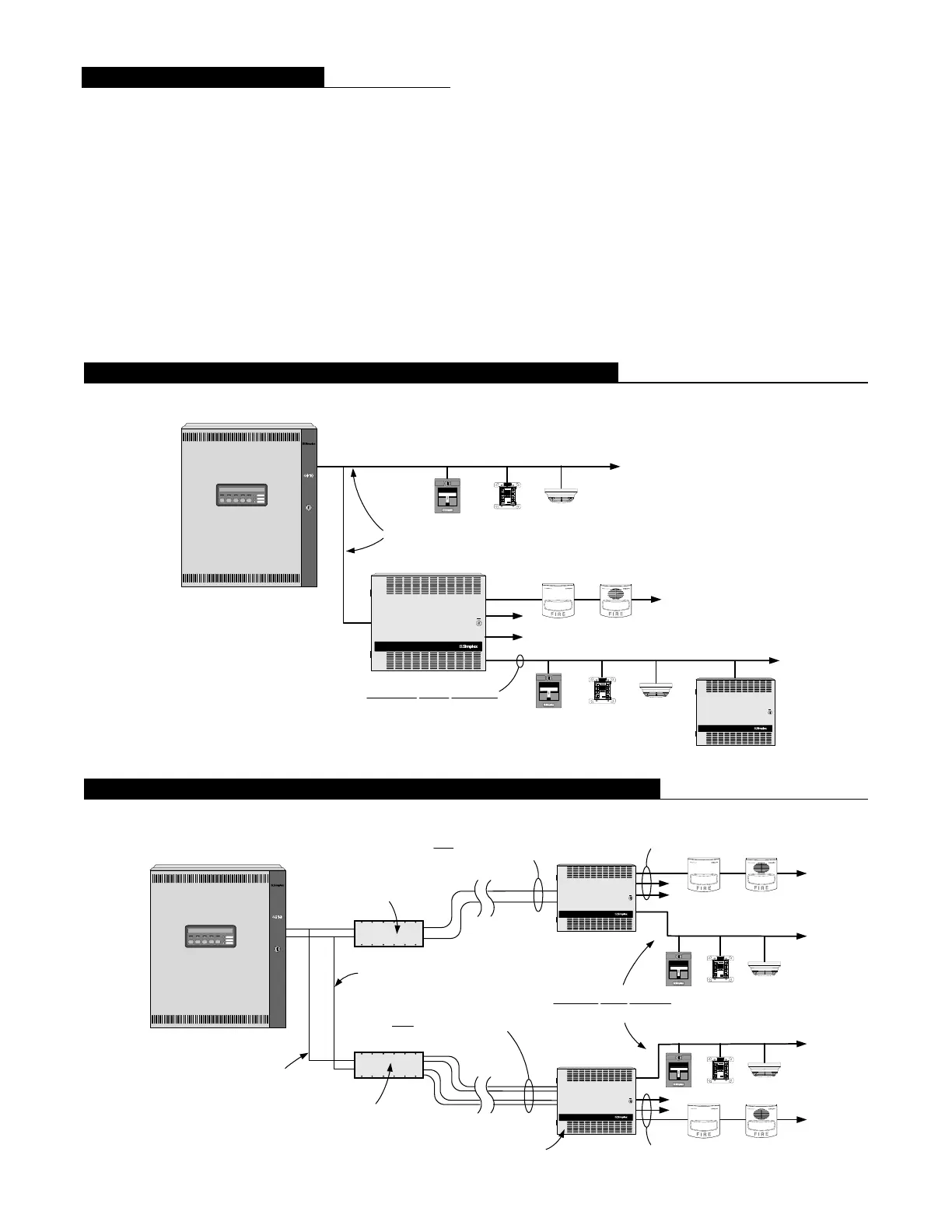

Three TrueAlert channels
Typical IDNet compatible devices
(refer to individual devices for actual wiring
requirements, some wiring is not shown)
4010 Fire Alarm Control Panel
IDNet addressable communications channel,
shown Class B
PO W ER
BEFO RE
SERVICING
CAUTI O N
DISCO NNECT
TrueAlert Addressable Controller
TM
Typical TrueAlert notification appliances
4010 Fire Alarm Control Panel
4090-9105, Class B Output
Fiber Optic Transmitter
Two
fiber cables, 3000 ft
(914 m) maximum distance
Four
fiber cables, 3000 ft
(914 m) maximum distance
4090-9107, Class X (Style 7)
Output Fiber Optic Transmitter
24 VDC power for
fiber optic transmitters
4009 IDNet NAC Extenders with optional
internal IDNet Fiber Receivers
IDNet addressable communications channel;
Class B or Class A, Class B shown
Repeated IDNet Channel: up to 100 devices maximum
on repeater output, 250 devices total on IDNet Channel
POWER
BEFORE
SERVI CIN G
CAUTION
DISCO NNECT
4009 IDNet NAC EXTENDER
TM
POWER
BEFORE
SERVI CIN G
CAUTION
DISCO NNECT
4009 IDNet NAC EXTENDER
TM
TrueAlert output channels (SLCs)
TrueAlert output channels (SLCs)
ALARMFIRE
PULL DOWN
SIMPLEX TIME RECORDER CO.
4090-910 1
MONITOR ZAM, CLASS B
INSTA L. IN STR . 574 -1 83
DATE CODE:
1
5
6
7
8
1
2
3
4
1
2
3
4
5
6
7
8
+ 24V
0V
+IDNET
- IDNET
ZONE PWR +
ZONE PWR -
IDC +
IDC -
ALARMFIRE
PULL DOWN
SIMPLEX TIME RECORDER CO.
4090-910 1
MONITOR ZAM, CLASS B
INSTA L. IN STR . 574 -1 83
DATE CODE:
1
5
6
7
8
1
2
3
4
1
2
3
4
5
6
7
8
+ 24V
0V
+IDNET
- IDNET
ZONE PWR +
ZONE PWR -
IDC +
IDC -
FI RE ALARM
CO NT RO L
DI SCO NNECT
PO W ER BEFO RE
SERVICI NG
CAUT I O N
* * SYSTEM IS NO RM AL * *
12:02:15pm M on 9-Feb-98
SUPV
ACK
SYSTEM
SUPERVISO RY
ALARM
ACK
FIRE
ALARM
TRO UBLE
ACK
SYSTEM
TRO UBLE
ALARM
SIL ENCE
ALARM
SILENCED
SYSTEM
RESET
AC
PO W ER
TrueAlert Addressable Controller with Wired IDNet Input Control
TrueAlert Addressable Controller with Fiber Optic IDNet Input Control
