Assembly

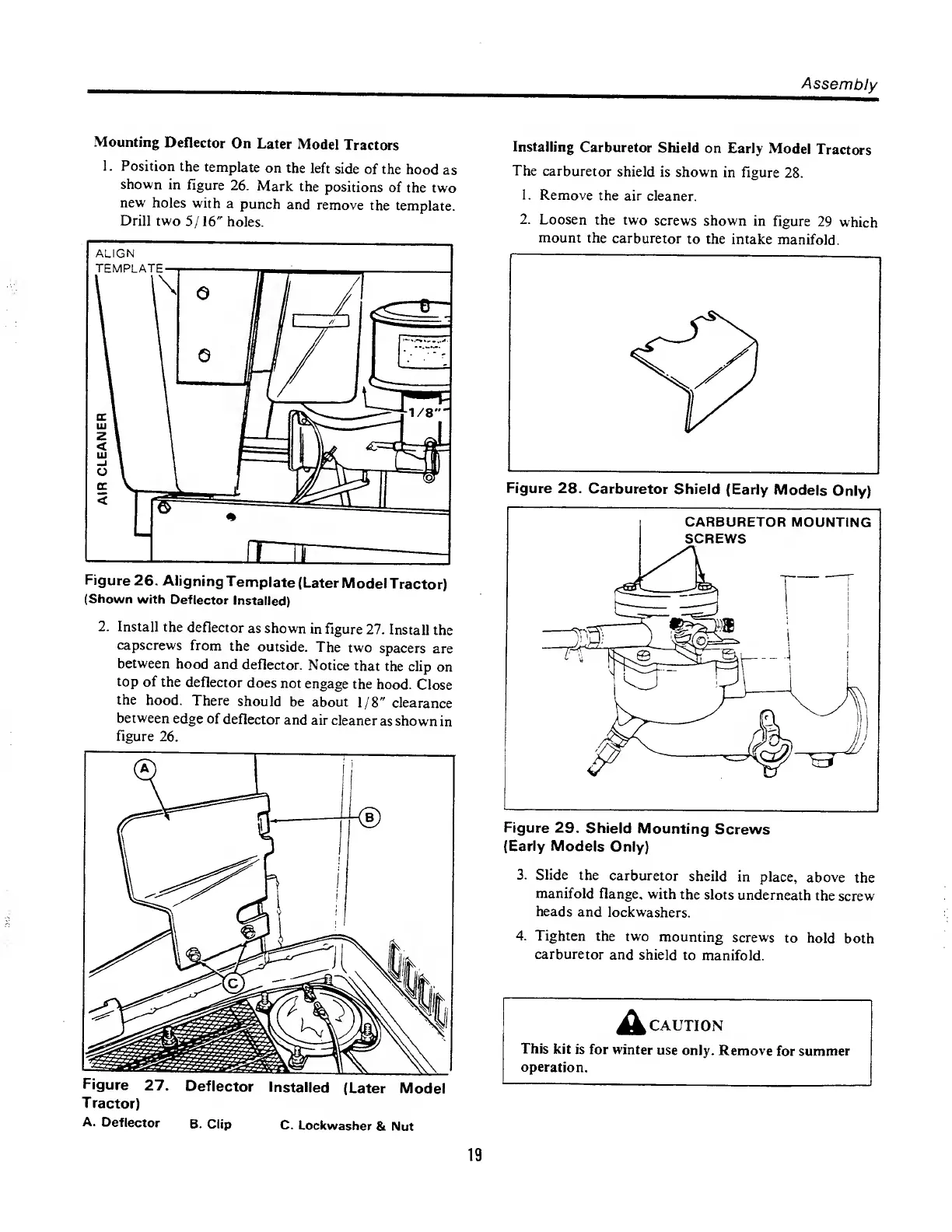

Mounting Deflector On Later Model Tractors
1. P osition the template on the left side of the hood as
shown in figure 26. Mark the positions of the two
new holes with a punch and remove the template.
Drill two 5/16" holes.
(Shown with Deflector Installed)
2. I nstall the deflector as shown in figure 27. Install the
capscrews from the outside. The two spacers are
between hood and deflector. Notice that the clip on
top of the deflector does not engage the hood. Close
the hood. There should be about 1/8" clearance
between edge of deflector and air cleaner as shown in
Figure 27. Deflector Installed (Later Model
T ractor)
A. Deflector B. Clip C. Lockwasher & IMut
Installing Carburetor Shield on Early Model Tractors
The carburetor shield is shown in figure 28.
1. Remove the air cleaner.
2. Loosen the two screws shown in figure 29 which
mount the carburetor to the intake manifold.
Figure 28. Carburetor Shield (Early Models Only)
Figure 29. Shield Mounting Screws
(Early Models Only)
3. Slide the carburetor sheild in place, above the
manifold flange, with the slots underneath the screw
heads and lockwashers.
4. Tighten the two mounting screws to hold both
carburetor and shield to manifold.
A CAUTION
This kit is for winter use only. Remove for summer
operation.
19
