Simplicity 1691522 - Page 26

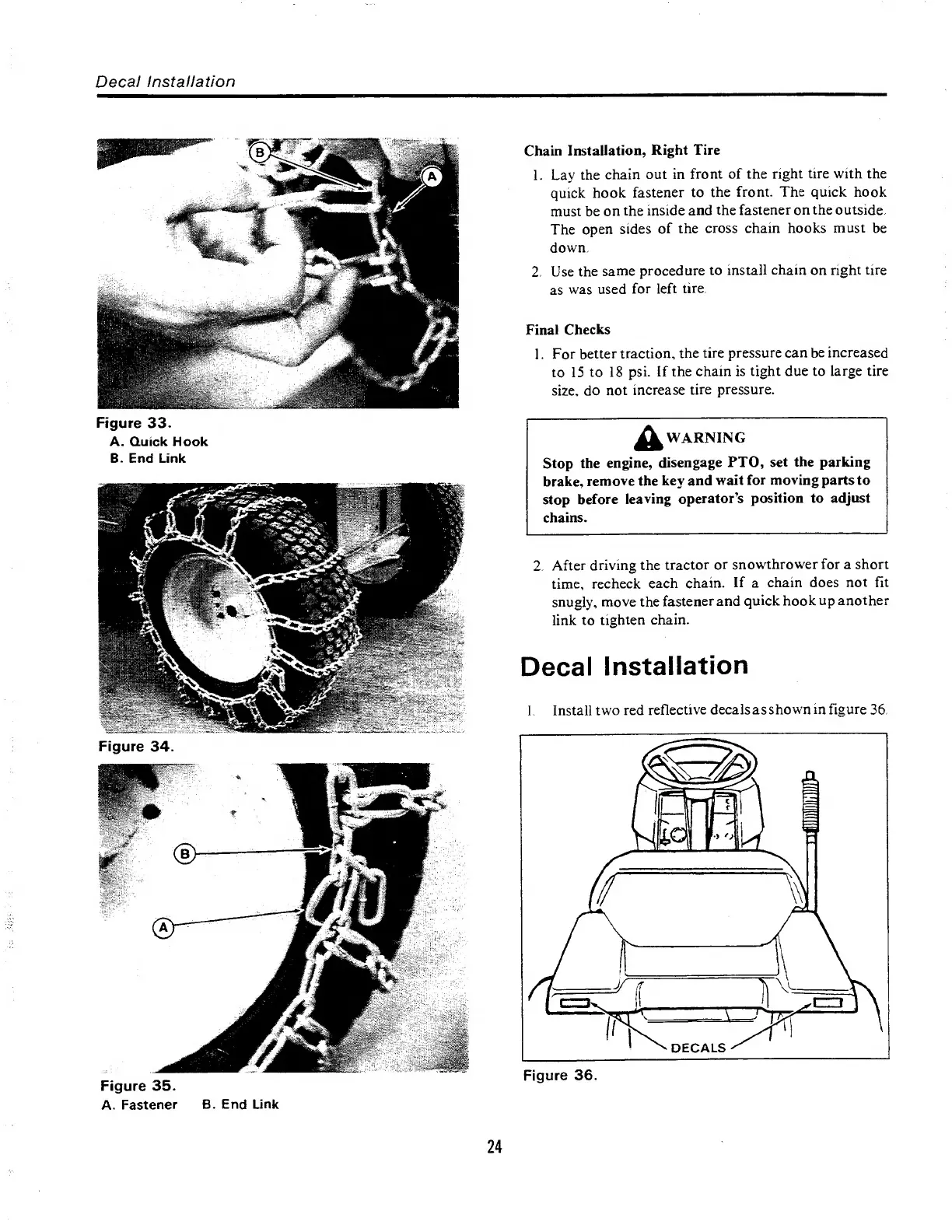

Decal Installation
Figure 33.
A. Quick Hook
B. End Link
Figure 34.
Figure 35.
A. Fastener B. End Link
Chain Installation, Right Tire
1. Lay the chain out in front of the right tire with the
quick hook fastener to the front. The quick hook
must be on the inside and the fastener on the outside.
The open sides of the cross chain hooks must be
down.
2. Use the same procedure to install chain on right tire
as was used for left tire.
Final Checks
1. For better traction, the tire pressure can be increased
to 15 to 18 psi. if the chain is tight due to large tire
size, do not increase tire pressure.
A WARNING
Stop the engine, disengage PTO, set the parking
brake, remove the key and wait for moving parts to
stop before leaving operator’s position to adjust
chains.
2. After driving the tractor or snowthrower for a short
time, recheck each chain. If a chain does not fit
snugly, move the fastener and quick hook up another
link to tighten chain.
Decal Installation
1. Install two red reflective decals as shown in figure 36.
DECALS
Figure 36.
24
