IfiWalAssembly
Install the Handle - All iVlodels
,
Liftthe hopper handle up until the outer holes in the
handle align with the holes in the shredder hopper
and secure with 1/4-20 x 3/4 screws, washers, and
nuts (A, Figure 21). Insert the screws from the
outside of the shredder hopper.

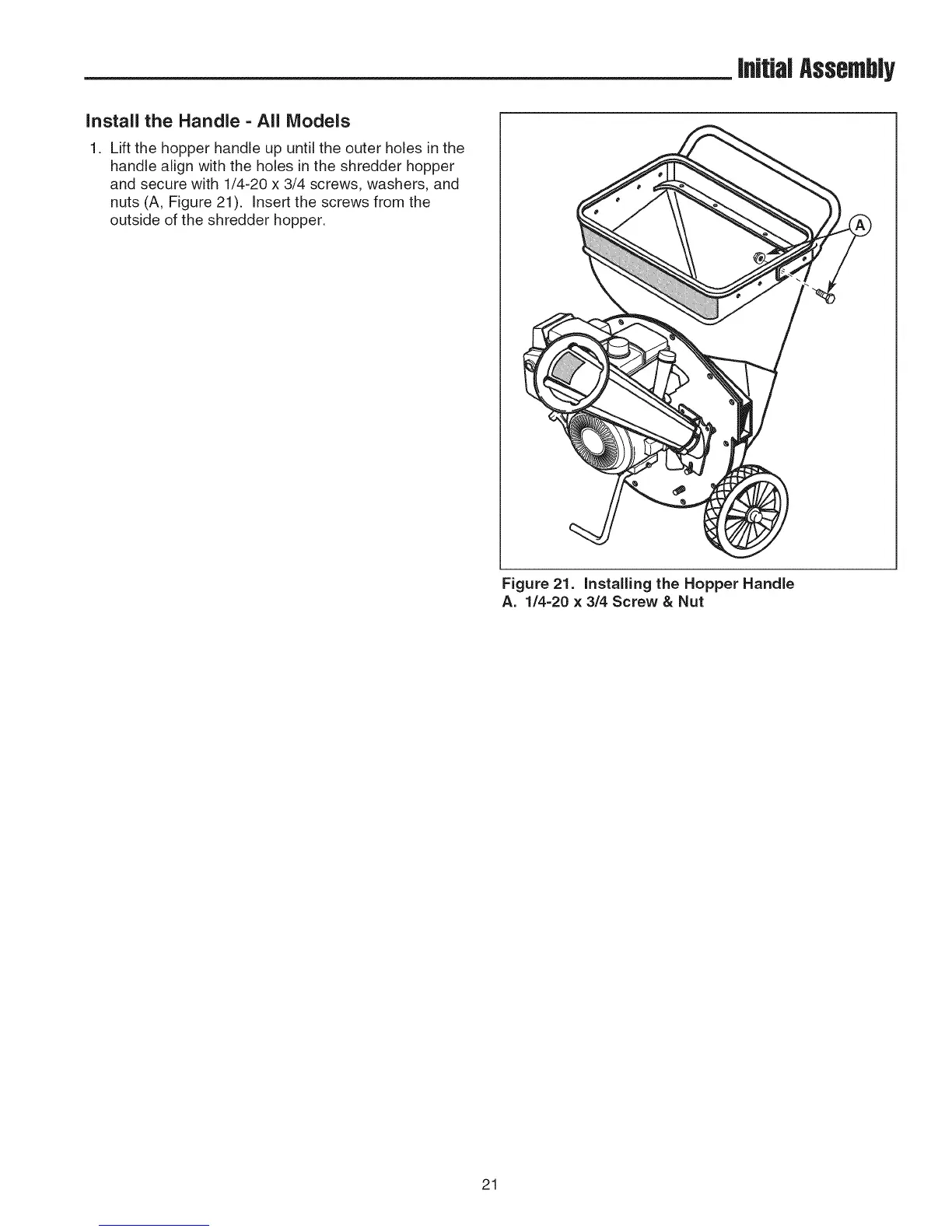

Figure 21. Installing the Hopper Handle
A. 1/4=20 x 3/4 Screw & Nut
21
