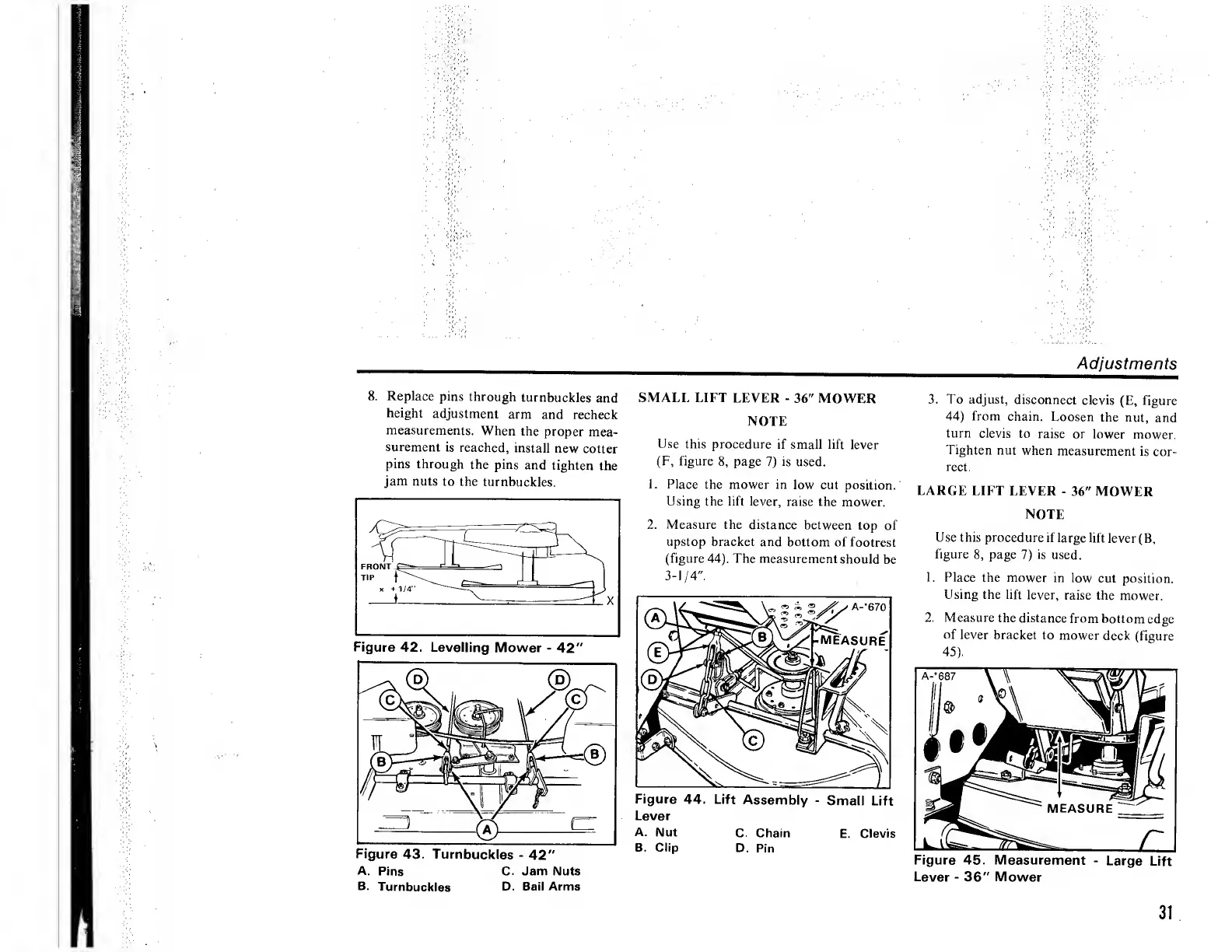

Adjustments
8. Replace pins through turnbuckles and
height adjustment arm and recheck
measurements. When the proper mea¬
surement is reached, install new cotter
pins through the pins and tighten the
Jam nuts to the turnbuckles.
Figure 42. Levelling Mower - 42
Figure 43. Turnbuckles - 42"
A. Pins C. Jam Nuts
B. Turnbuckles D. Bail Arms
SMALL LIFT LEVER - 36" MOWER
NOTE
Use this procedure if small lift lever
(F, figure 8, page 7) is used.
1. Place the mower in low cut position.
Using the lift lever, raise the mower.
2. Measure the distance between top of
upstop bracket and bottom of footrest
(figure 44). The measurement should be
3-1/4".
A. Nut C. Chain E. Clevis
B. Clip D. Pin
3. T o adjust, disconnect clevis (E, figure
44) from chain. Loosen the nut, and
turn clevis to raise or lower mower.
Tighten nut when measurement is cor¬
rect.
LARGE LIFT LEVER - 36" MOWER
NOTE
Use this procedure if large lift lever (B,
figure 8, page 7) is used.
1. Place the mower in low cut position.
Using the lift lever, raise the mower.
2. Measure the distance from bottom edge
of lever bracket to mower deck (figure
45).
Figure 45. Measurement - Large Lift
Lever - 36" Mower
31
