Using the Wheel Release - Lock Pins
One or both wheels can be temporarily disengaged from the
drive axles for ease of handling when transporting the unit.

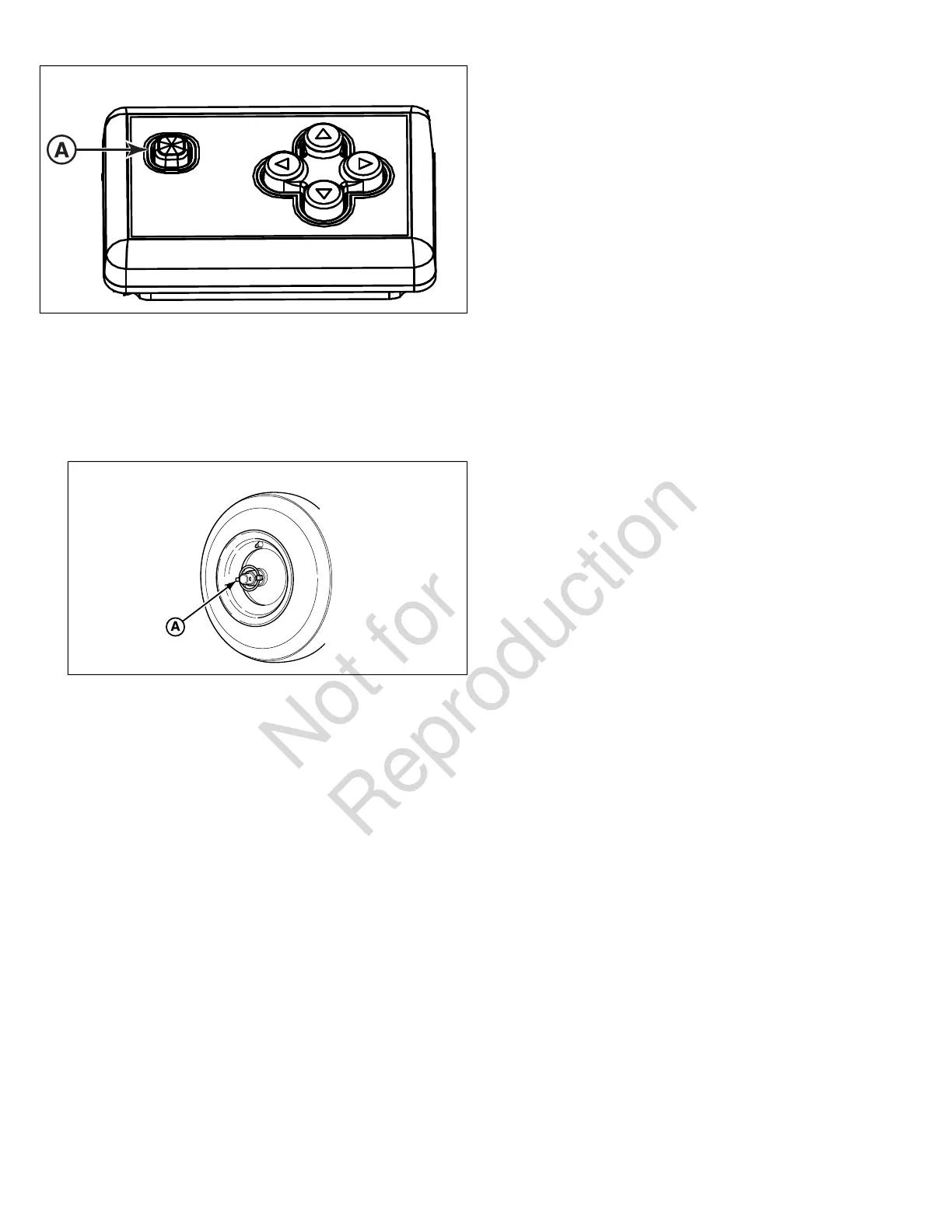

1. Open the pull ring (A, Figure 17) over the wheel hub.
17
2. Insert the retaining pin through the outer hole in the axle
and close the pull ring over the axle.
3. To engage the wheel and axle, align the wheel hub and the
inner axle hole, then install the retaining pin fully and close
the pull ring over the wheel hub.
