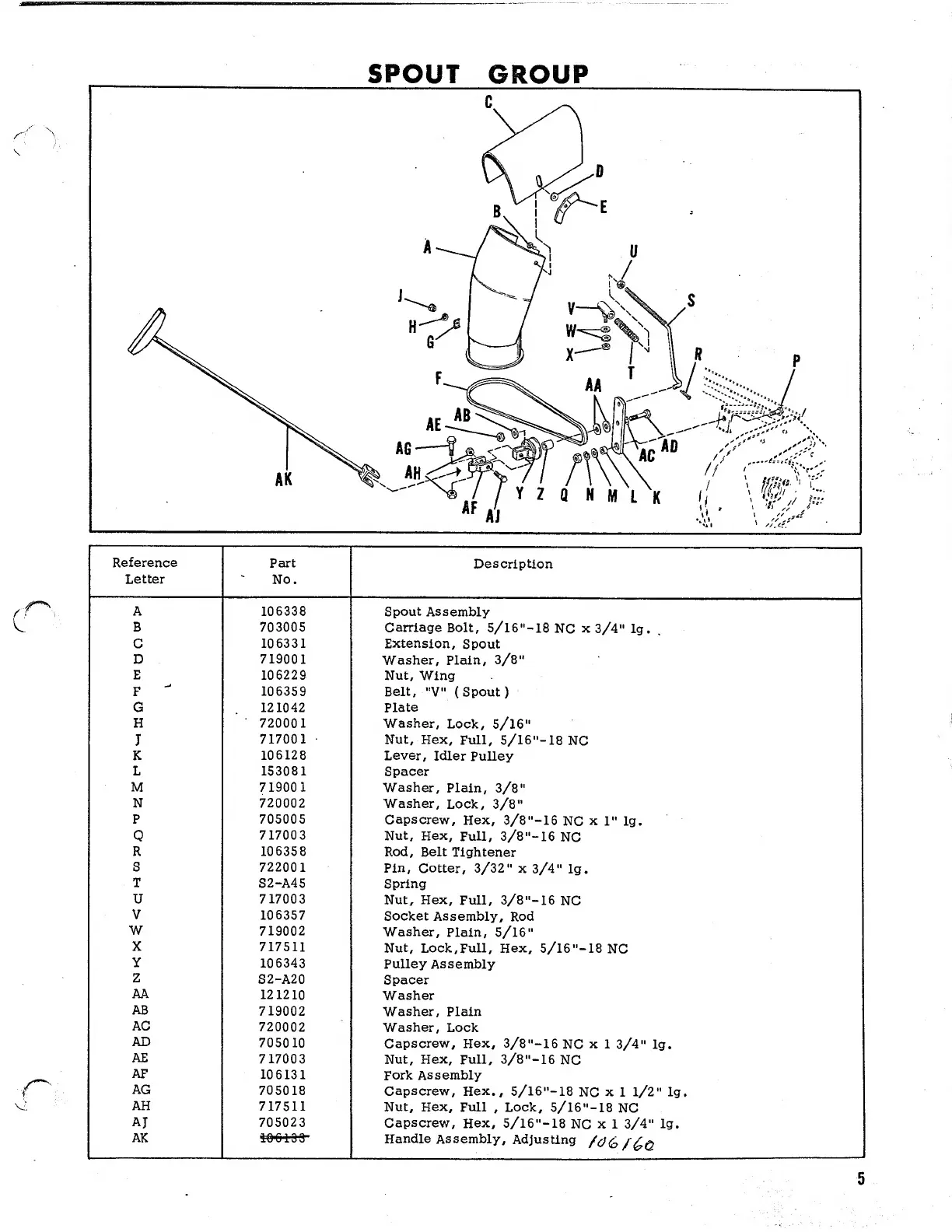

Simplicity SNO-AWAY User Manual

SPOUT GROUP
Reference
Letter
Part
No.
Description
A
106338
Spout Assembly
B
703005
Carriage Bolt, 5/l6"-18 NC x 3/4" lg.
C 106331
Extension, Spout
D
719001
Washer, Plain, 3/8"
E 106229
Nut, Wing
F " 106359
Belt, "V" (Spout)
G 121042
Plate
H
720001
Washer, Lock, 5/16"
J
717001
Nut, Hex, Full, 5/l6"-18 NC
K
106128
Lever, Idler Pulley
L 153081
Spacer
M 719001
Washer, Plain, 3/8"
N 720002
Washer, Lock, 3/8"
P 705005
Capscrew, Hex, 3/8"-16 NC x 1" lg.
Q
717003
Nut, Hex, Full, 3/8"-16NC
R 106358
Rod, Belt Tightener
S
722001
Pin, Cotter, 3/32" x 3/4" lg.
T
S2-A45
Spring
U
717003
Nut, Hex, Full, 3/8"-16 NC
V
106357
Socket Assembly, Rod
W
719002
Washer, Plain, 5/16"
X
717511
Nut, Lock,Full, Hex, 5/l6"-18 NC
Y
106343
Pulley Assembly
Z
S2-A20
Spacer
AA
121210 Washer
AB
719002
Washer, Plain
AC
720002
Washer, Lock
AD
705010
Capscrew, Hex, 3/8"-16 NC x 1 3/4" lg.
AE
717003
Nut, Hex, Full, 3/8"-16 NC
AF
106131
Fork Assembly
AG
705018
Capscrew, Hex., 5/16"-18 NC x 1 1/2" lg.
AH
717511
Nut, Hex, Full , Lock, 5/16"-18 NC
AJ
705023
Capscrew, Hex, 5/16"-18 NC x 1 3/4" lg.
AK toe 133-
Handle Assembly, Adjusting /<?£
