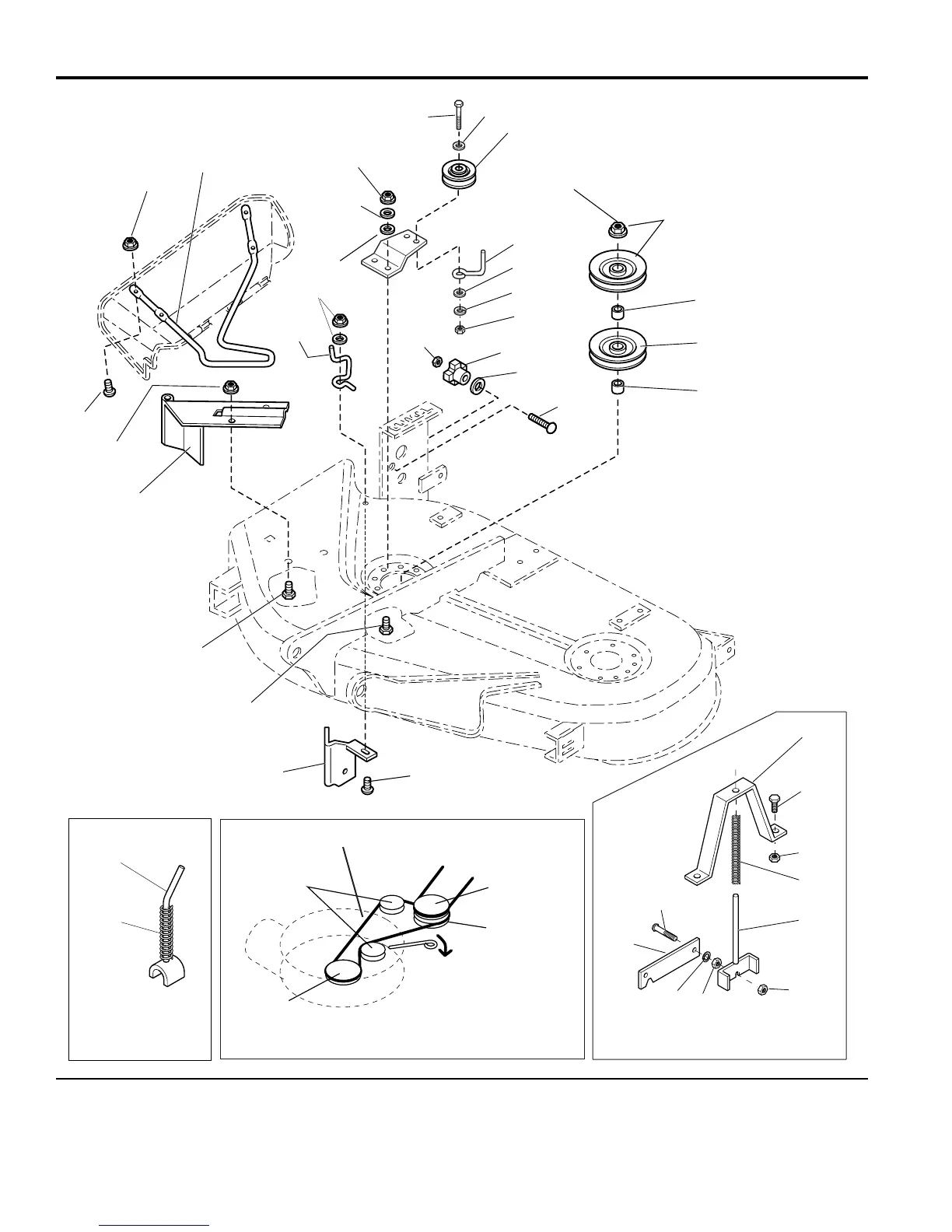

Turbo Mounting Group - 38” Regent / 500 / 2500 & ZT Series
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
1693225 Turbo, 38”
NOTE: All original mower deck
parts are shown as phantom parts.
A-AT42404
Existing
Pulley & Nut
Existing
Hardware
Existing
Hardware
Torque to
55-70 ft. lbs.
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
33
34
35
1
2
34
23
24
5
25
26
27
9
28
30
29
Regent/500/2500
Counterbalance Assembly
31
32
Zero Turn
Counterbalance
Assembly
Mower Deck
Turbo Drive Pulley
Turbo Drive
Pulley
Idler
Pulleys
To Slacken
Belt
Mower Deck
Arbor Pulley
3
Belt Routing
