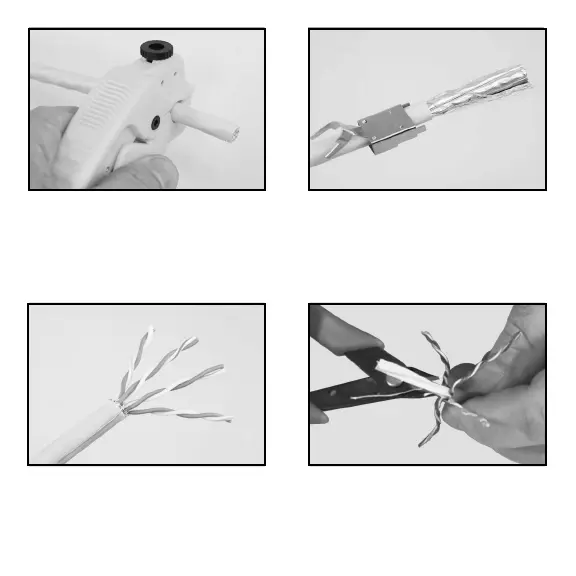

STEP 1
Using the Simply45 Adjustable LAN Cable Stripper
(S45-S01BL/YL), score the cable jacket about 1.25”
(3cm) from the cable end Be sure not to cut too
deep where the wire conductors could be nicked.
Remove the stripped cable jacket.
STEP 3
Trim all cable shielding (AL foil, metal braid) back to the cable jacket. We recommend
using the Simply45 5” Angled Flush Cutter (S45-801). Do not cut o the drain wire.
Fold the drain wire straight back about 1inch (2.5cm) over the cable jacket.
If there is a center spline/pair separator cut it o as close to the jacket as possible
STEP 2
Slide the S45-1150 metal shell onto
the cable jacket with the front of the
shell facing the termination end. Slide it
back out of the way for the moment.
