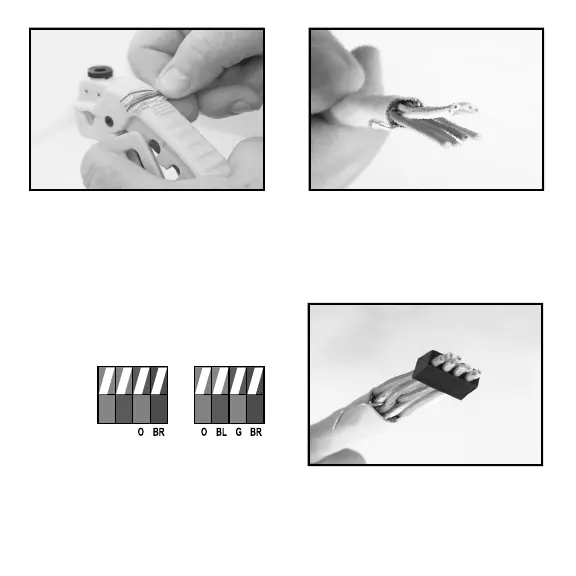

STEP 4
Untwist and straighten the wire conductors. We recommend using the Simply45
Adjustable LAN Cable Stripper (S45-S01BL/YL) that has a wire straightener comb on
the top. Next, align the wires in the correct alignment pattern (Type A or B).
The B pattern is the most used today.
STEP 5
Bar45™ - Following the pattern above, insert the top and bottom wires into the load
bar. Once inserted, make sure the wires follow the pattern correctly.
T568A
GR BL
T568B
WO WG
WBL
WBR
WG
TOP ROW
BOTTOM ROW
WO
WBL
WBR
