Simrad CRUISE 5 User Manual

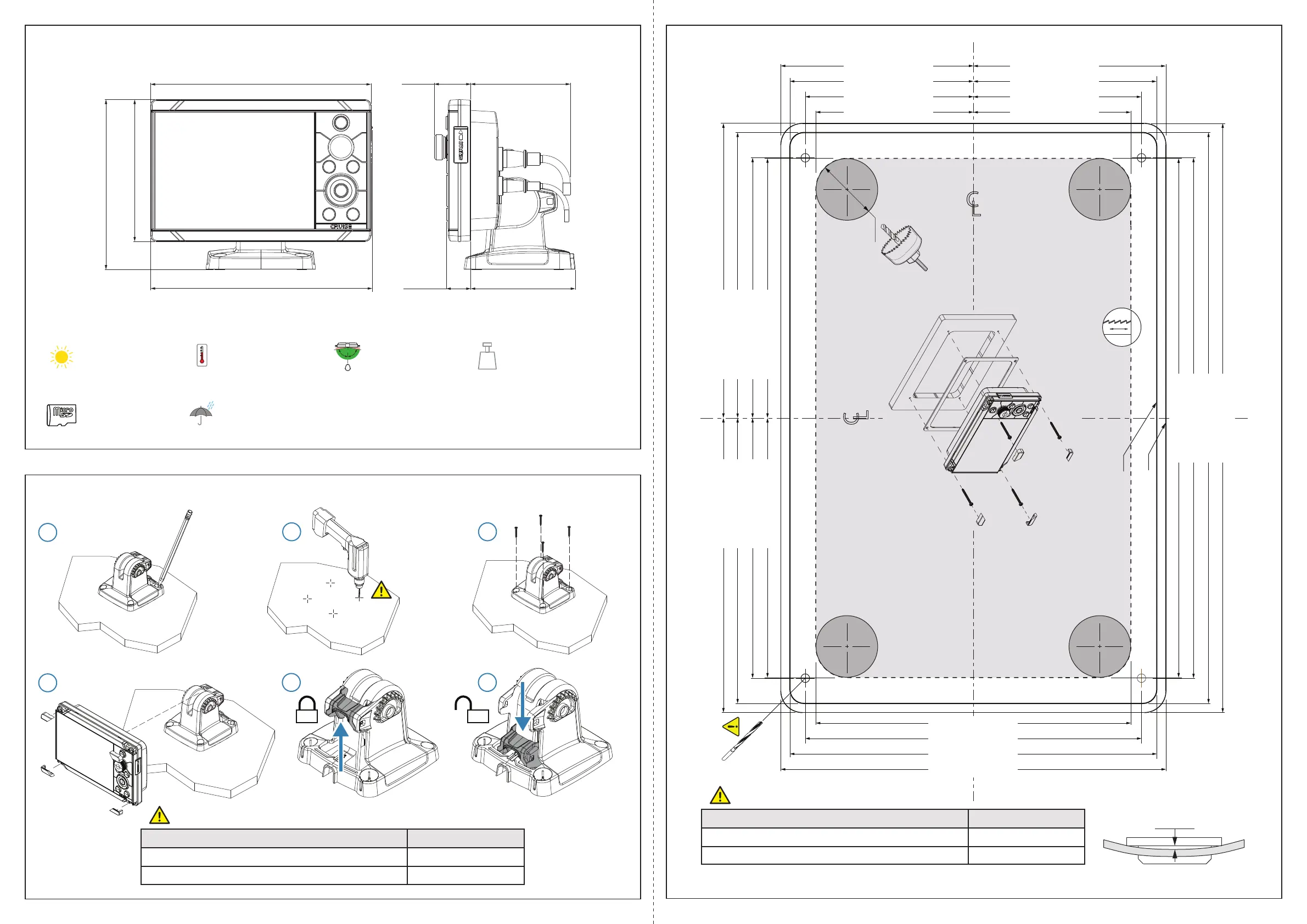

Mounting template (1/2)

Details
1x card reader slot
Micro SD
IPX6
IPX7
-15°C to +55°C
+5°F to +131°F
70°/50°, top/bottom
70°/70°, left/right
0.63 Kg
1.39 lbs
Sunlight readable
Kg
185.5 mm
(7.30”)
184.4 mm
(7.26”)
142.3 mm
(5.60”)
118.7 mm
(4.67”)
30.5 mm
(1.20”)
83.25 mm
(3.28”)
20.5 mm
(0.81”)
87.4 mm
(3.44”)
Bracket mounting
1
32
TM
Material 10# screw
Soft materials e.g. Plywood Ø 3.7-4.0 mm (5/32”)
Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 4.1-4.7 mm (3/16”)
Recommended pilot holes.
A
B
4
Maximum curve of the dash
0.5 mm (0.02”)
REMOVE SHADED AREA
SUN COVER
PRODUCT OUTLINE
Ø20.0 mm (0.79”)
166.9 mm (6.59”) 167.3 mm (6.57”) 183.5 mm (7.23”) 189.4 mm (7.46”)
101.2 mm (3.99”)
108.0 mm (4.25”)
117.9 mm (4.64”)
123.8 mm (4.87”)
50.6 mm (1.99”)
54.0 mm (2.13”)
59.0 mm (2.32”)
61.9 mm (2.44”)
50.6 mm (1.99”)
54.0 mm (2.13”)
59.0 mm (2.32”)
61.9 mm (2.44”)
83.5 mm (3.29”) 83.7 mm (3.29”) 91.8 mm (3.61”) 94.7 mm (3.73”)
83.5 mm (3.29”) 83.7 mm (3.29”) 91.8 mm (3.61”) 94.7 mm (3.73”)
L
C
L
C
Material #6 screw
Soft materials e.g. Plywood Ø 2.3-2.5 mm (3/32”)
Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 2.7-3.1 mm (7/64”)
Recommended pilot holes.
¼ Note: The panel mounting kit is sold separately.

Simrad CRUISE 5 Specifications

General

Display Size	5 inches
Sonar Type	CHIRP
GPS	Yes
Waterproof Rating	IPX7
DownScan Imaging	No
Display Resolution	800 x 480 pixels
Frequency	83/200 kHz
Chartplotter	Yes
Display Type	WVGA Color TFT LCD
Transducer	Included
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Resolution	800 x 480 pixels
