Page 2 of 2
TECHNICAL SPECIFICATIONS

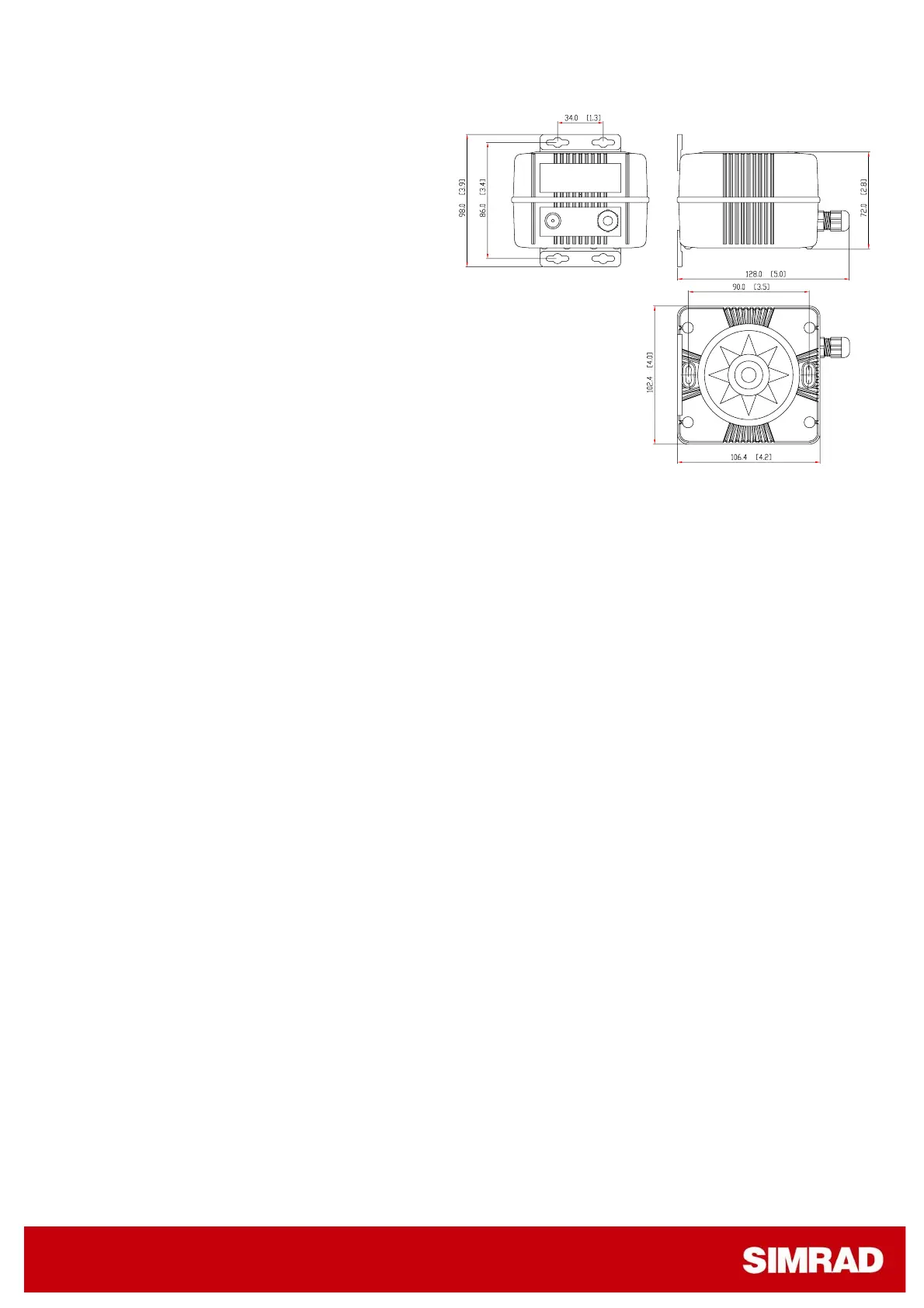

Dimensions:.................See figure.
Weight:.......................0.9 kg (2.0 lbs)
Supply and interface: ....8-16V via SimNet
Power consumption.......1,4 W
Calibration:..................Automatic
Repeatability:...............± 1.5 degrees
Roll/Pitch:....................± 35 degrees
Accuracy: ....................± 3 degrees after calibration
SimNet Network load factor (NL): 3
SimNet ports (input/output):......1
Dynamic performance:
With random excitation
of ±10° at max. 1 Hz: ....FC40: Heading error <5°
RC42: Heading error <2°
With heading step input of
90° at a rate of 10°/s: ....FC40: Heading error 10 sec after turn <5°
RC42: Heading error 10 sec after turn <2°
Environmental Protection: IP56
Compass safe distance: .0.5 m (1.7’)
Temperature range:
Operation: .............0 to +55°C (+32 to + 130°F)
Storage:................–30 to +70°C (–22 to +158°F)
Cable supplied:.............5.5 m (18’) SimNet cable with connector
Mounting:....................Deck or bulkhead
Material:......................FC40: Black ABS, RC42: Off white ABS
Output signal: ..............FC40: PGN127250, RC42: PGN127250, 127251.
NMEA compliant
Output on SimNet/NMEA2000 format
• Calibrated heading, transmission rate of 20 Hz when selected as heading source on SimNet,
otherwise 1 Hz.
• Magnetic field data
• Error messages and status information
Input from SimNet:
• Heading offset
• Calibration start
• Software upload
SPARE PARTS
22090187 FC40 Fluxgate Compass
w/accessories
22090195 RC42 Rate Compass
w/accessories
24006363 SimNet Cable, 5.5 m (18’) with
Plug
22081442 Installation accessories
Consisting of:
20104972 Mounting plate (2)
44140762 Screw 3.5x25 (2)
44140770 Screw 30x9 (4)
22081376 Plug (2)
20222543 / A
