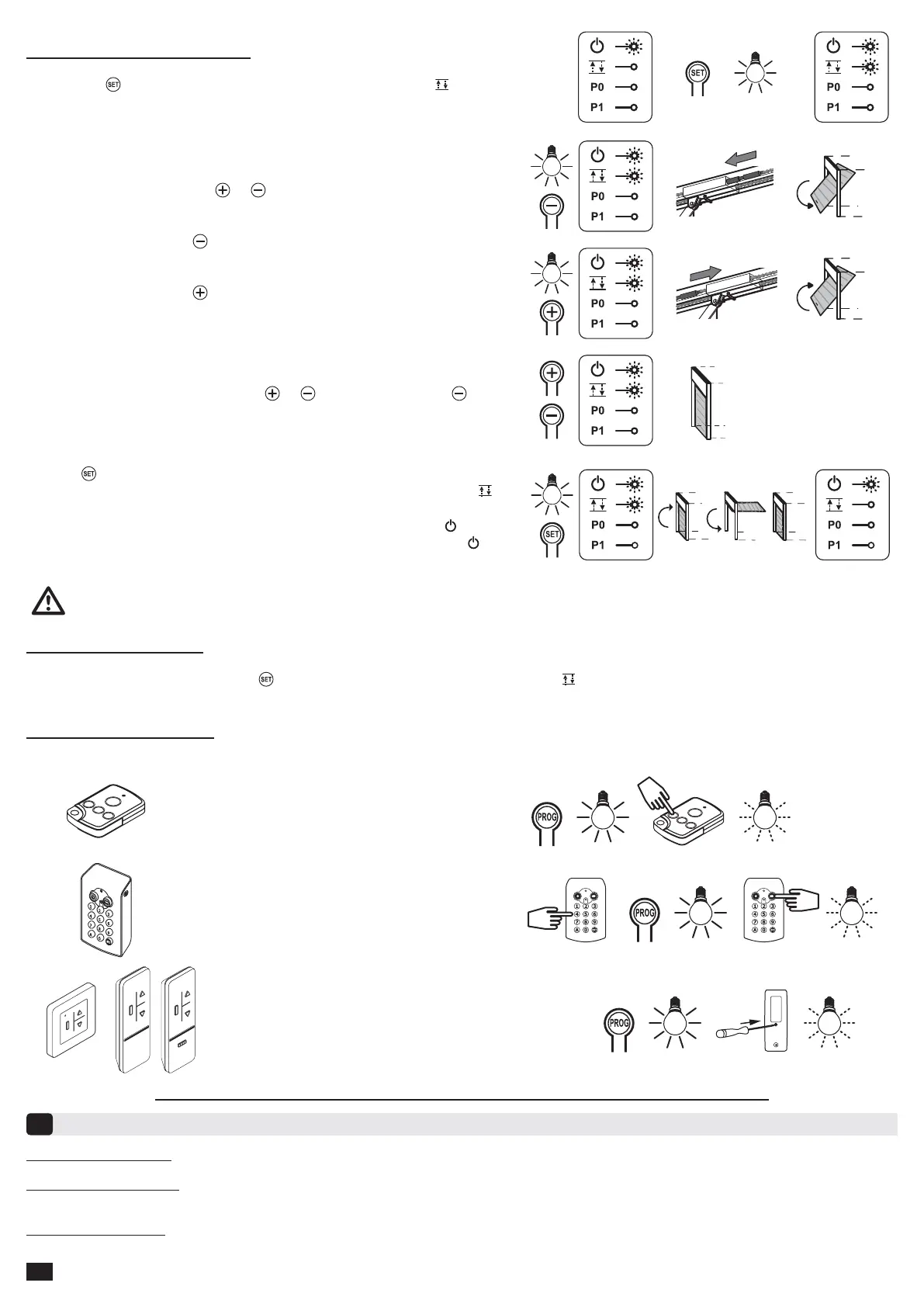

Simu GM800 - Operating Test; Obstacle Detection Function; Built-in Lighting Operation

6
End limit setting and self-learning
1- Press the
button until the light comes on (2 s). The indicator light
fl ashes.
2- Control the motor using the
or buttons so that the transmission system
runner moves to link up with the trolley and closes the door.
- Pressing and holding the
button closes the door. Release the button before
the motor has time to force against the door.
- Pressing and holding the
button opens the door.
4- Press to validate the closed end limit and start the self-learning cycle. The
door runs through a complete Open / Close cycle and the indicator light
goes out.
- If the self-learning cycle was completed correctly, the indicator light
stays on.
- If the self-learning cycle was not completed correctly, the indicator light
conti-
nues to fl ash.
During self learning mode:
- When the door is moving, pressing any button will stop the movement and stop the self-learning mode.
- When the door is stopped, pressing
until the light comes on and the indicator light comes off (2 s) will exit the self-learning mode.
The self-learning mode can be called up at any time even after the self-learning cycle has been completed.
Memorising remote controls
Up to 32 control channels can be stored. Running this procedure for a previously stored channel will clear it.
At this stage in the installation process, the GM800 motor drive unit is ready to run.
3- Adjust the closed position using the or buttons. Release the button
before the motor has time to force against the door.
2 s.
CLAC!
CLAC!
Operating test
6
Using the remote controls: The remote controls have a sequential operation (open / stop / close / stop…) or functionnal (3 keys).
Obstacle detection function: The detection of an obstacle during door opening will stop the door. The detection of an obstacle during door closure will reopen
the door. Make sure that obstacle detection works when the door encounters an obstacle 50 mm from the ground.
Built in lighting operation: The light will come on every time the motor drive unit is operated. It will go out automatically after one minute once the door stops.
Repetitive use which causes the light to stay on continually may result in an automatic cut-off condition triggered by the thermal cut
out protection mechanism.
Example with TSA+ 4 channels remote control:
Example with Digicode Radio SA Hz:
Example with COLOR+ range transmitters:
2 s. 5 s.
2 s. 5 s.
2 s. 5 s.
PROG
At the end of installation, it must be checked that the limitation of forces complies with appendix A of the standard EN 12 453.
